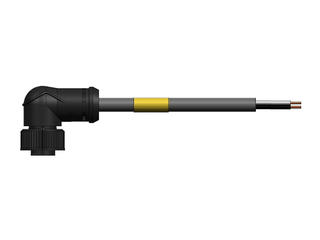

1300068183 - Mini-Change A-Size Single-Ended Cordset, 4 Poles, Female (90°) to Pigtail, 16 AWG, Gray TPU Cable, 2.0m (6.56') Length

1300068183

Active
Molex

MINI-CHANGE A-SIZE SINGLE-ENDED CORDSET, 4 POLES, FEMALE (90°) TO PIGTAIL, 16 AWG, GRAY TPU CABLE, 2.0M (6.56') LENGTH

Find alt
1300068183 - Mini-Change A-Size Single-Ended Cordset, 4 Poles, Female (90°) to Pigtail, 16 AWG, Gray TPU Cable, 2.0m (6.56') Length

1300068183

Active
Molex

MINI-CHANGE A-SIZE SINGLE-ENDED CORDSET, 4 POLES, FEMALE (90°) TO PIGTAIL, 16 AWG, GRAY TPU CABLE, 2.0M (6.56') LENGTH

Find alt

Description

General part information

130006 Series

MINI-CHANGE A-SIZE SINGLE-ENDED CORDSET, 4 POLES, FEMALE (90°) TO PIGTAIL, 16 AWG, GRAY TPU CABLE, 2.0M (6.56') LENGTH

Technical Specifications

Parameters and characteristics for this part

Specification1300068183
1st Connector GenderFemale Sockets
1st Connector Mounting TypeFree Hanging (In-Line)
1st Connector Number of Positions4 positions
1st Connector Number of Positions LoadedAll
1st Connector TypeRight Angle, Plug
2nd Connector TypeWire Leads
Assembly ConfigurationStandard
Cable MaterialThermoplastic Polyurethane (TPU)
Cable TypeRound
ColorGray
Ingress Protection DescriptionWaterproof, Dust Tight
Ingress Protection IP RatingIP67
Length6.56 ft
ShieldingUnshielded
UsageIndustrial Environments
