AYU2T-1HBR-D100N(HF)
ActiveJST Sales America Inc.
AYU2T CABLE ASSEMBLY PLUG-PLUG 1
Deep-Dive with AI
DocumentsJST Prefix Suffix Chart
Technical Specifications
Parameters and characteristics for this part
| Specification | AYU2T-1HBR-D100N(HF) |
|---|---|
| 1st Connector | Micro Coaxial |
| 1st Connector Mounting Feature | Bulkhead - Rear Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Male |
| 2nd Connector | U.FL (UMCC) Plug, Right Angle |
| 2nd Connector Mounting Feature | Bulkhead - Rear Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | Coaxial Cable |
| Cable Type [diameter] | 0.81 mm |
| Color | Red |
| Frequency - Max [Max] | 20 GHz |
| Length [x] | 0.1 m |
| Length [x] | 3.937 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Style | Micro Coaxial to Micro Coaxial |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 4.87 | |
| 10 | $ 4.42 | |||
| 25 | $ 4.19 | |||
| 50 | $ 4.09 | |||
| 100 | $ 3.90 | |||
| 250 | $ 3.41 | |||
| 500 | $ 3.31 | |||
| 1000 | $ 2.83 | |||
| 2500 | $ 2.63 | |||
Description
General part information
AYU2T-1HBR-D100N(HF)

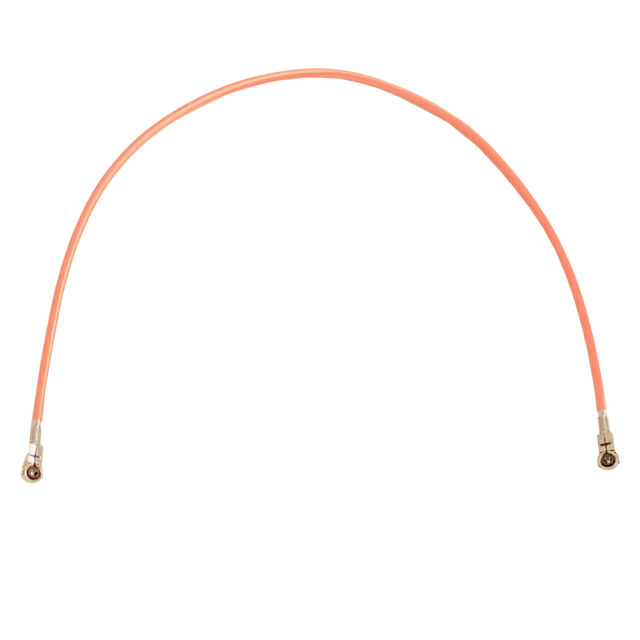

Cable Assembly Coaxial Micro Coaxial to Micro Coaxial 0.81mm OD Coaxial Cable 3.937" (100.00mm)
