Description
General part information

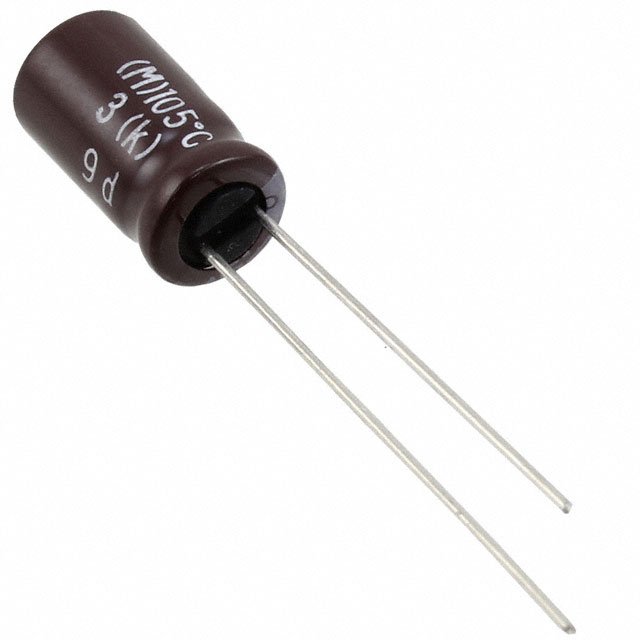

ELXV800ELL180MFB5D
18 µF 80 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | ELXV800ELL180MFB5D |
|---|---|
| Applications | Automotive |
| Capacitance | 18 µF |
| Height - Seated (Max) | 0.512 in |
| Impedance | 1.1 Ohms |
| Lead Spacing | 0.098 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Ripple Current | 150 mA, 30 mA |
| Size / Dimension Diameter | 0.248 in |
| Tolerance | 20 % |
| Voltage - Rated | 80 Vp-p |
