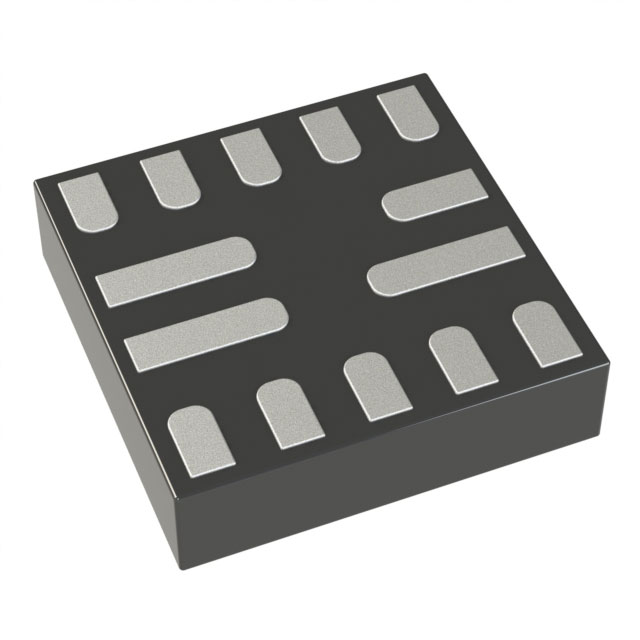

MPM3814CGPA-Z
ActiveMonolithic Power Systems Inc.
2.75V TO 6V, 1A, ULTRA-SMALL POW
MPM3814CGPA-Z
ActiveMonolithic Power Systems Inc.
2.75V TO 6V, 1A, ULTRA-SMALL POW
Description
General part information
MPM3814CGPA-Z
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 6V 1A 2.75V - 6V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | MPM3814CGPA-Z |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 1 A |
| Efficiency | 87 % |
| Features | Adjustable Output, Remote On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 14-PowerLFLGA Module |
| Package Length | 2.5 mm |
| Package Name | 14-ECLGA |
| Package Width | 2.5 mm |
| Size / Dimension Height | 0.05 in |
| Size / Dimension Length | 0.1 in |
| Size / Dimension Width | 0.1 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) | 6 V |
| Voltage - Input (Min) | 2.75 V |
| Voltage - Output 1 (Max) | 6 V |
| Voltage - Output 1 (Min) | 0.6 V |
