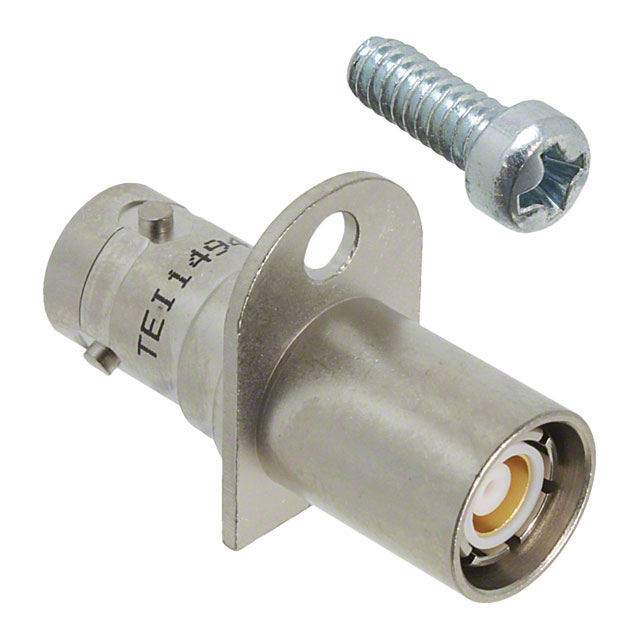

Specification	J72

Adapter Series	TRB Twinaxial/Triaxial to Twinaxial
Adapter Type	Jack to Jack
Body Finish	Nickel
Center Gender	Female
Conversion Type	Between Series
Convert From (Adapter End)	TRB Twinaxial, Female Socket, Triaxial (Concentric) Jack
Convert To (Adapter End) Gender	Female Socket
Convert To (Adapter End) Type	Twinaxial Jack
Fastening Type	Push-Pull, Bayonet Lock
Features	Three Lug
Frequency - Max	500 MHz
Mounting Feature	Flange
Mounting Type	Panel Mount
Style	Straight

- Series

Part	Center Contact Plating	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Body Material	Includes Total Count	Includes	Dielectric Material	Body Finish	Mounting Type	Connector Type	Contact Termination	Number of Ports	Shield Termination	Frequency - Max	Fastening Type	Housing Color	Connector Style	Impedance	Mounting Feature	Style	Adapter Series	Adapter Type	Center Gender	Conversion Type	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Convert From (Adapter End)	Impedance	Convert To (Adapter End)	Center Contact Material	Number of Positions	For Use With/Related Products	Color	Accessory Type	Mating Cycles	Features
Cinch Connectivity Solutions Trompeter 6-0001-2	Gold	-65 °C	165 °C	500 V	Brass	3 pcs	Connector Nut Washer	Polytetrafluoroethylene (PTFE)	Tin	Panel Mount Right Angle Through Hole	Female Socket Jack	Solder	1	Solder	4 GHz	Bayonet Lock	Silver	BNC	75 Ohm	Bulkhead Front Side Nut
Cinch Connectivity Solutions Trompeter AD378									Nickel	Free Hanging (In-Line)					500 MHz	Threaded					Straight	TRB Twinaxial/Triaxial to TRB Twinaxial/Triaxial	Jack to Jack	Female	Same Series	TRB Twinaxial/Triaxial (Concentric) Jack	Female Socket	Female Socket TRB Twinaxial Triaxial (Concentric) Jack	Non-Constant
Cinch Connectivity Solutions Trompeter AD1W									Nickel	Free Hanging (In-Line)						Bayonet Lock Push-Pull			75 Ohm		Straight	BNC to WECo	Plug to Jack	Female Male	Between Series			BNC Jack Female Socket		Male Pin Standard Plug WECo
Cinch Connectivity Solutions Trompeter 3-0347-9	Gold				Brass	4 pcs	Connector Gasket Lockwasher Nut	Polytetrafluoroethylene (PTFE)	Nickel	Panel Mount					500 MHz	Bayonet Lock Threaded				Bulkhead	Straight	SMA to TRB	Jack to Jack	Female	Between Series	SMA Jack	Female Socket	Female Socket TRB Twinaxial Triaxial Jack	Non-Constant		Beryllium Copper
Cinch Connectivity Solutions Trompeter J24T-50
Cinch Connectivity Solutions Trompeter LP-50																																2	RCA Coaxial Connectors	Blue	Looping Plug
Cinch Connectivity Solutions Trompeter 6-0001-1	Gold	-65 °C	165 °C	500 V	Brass	3 pcs	Connector Nut Washer	Polytetrafluoroethylene (PTFE)	Tin	Panel Mount Right Angle Through Hole	Female Socket Jack	Solder	1	Solder	4 GHz	Bayonet Lock	Silver	BNC	50 Ohm	Bulkhead Front Side Nut
Cinch Connectivity Solutions Trompeter BJ224	Gold				Brass	3 pcs	Connector Lockwasher Nut		Nickel	Panel Mount					4 GHz	Bayonet Lock			50 Ohm	Bulkhead	Straight	BNC to BNC	Jack to Jack	Female	Same Series	BNC Jack	Female Socket	BNC Jack Female Socket
Cinch Connectivity Solutions Trompeter BJ3150	Gold	-65 °C	200 °C	400 V	Brass	3 pcs	Connector Nut Washer		Nickel	Panel Mount	Female Socket Jack	Solder Cup	1	Solder Tag	500 MHz	Threaded	Silver	TTM Twinaxial/Triaxial		Bulkhead Front Side Nut									Non-Constant		Beryllium Copper					500 cycles
Cinch Connectivity Solutions Trompeter BJ77	Gold	-65 °C	165 °C	400 V	Brass	3 pcs	Connector Nut Washer		Nickel	Panel Mount	Female Socket (Concentric) Jack	Solder Cup	1	Solder Tag	500 MHz	Bayonet Lock	Silver	TRB Twinaxial/Triaxial		Bulkhead Rear Side Nut									Non-Constant		Beryllium Copper					500 cycles	Extended Insulation Three Lug
