Description
General part information
09643007220

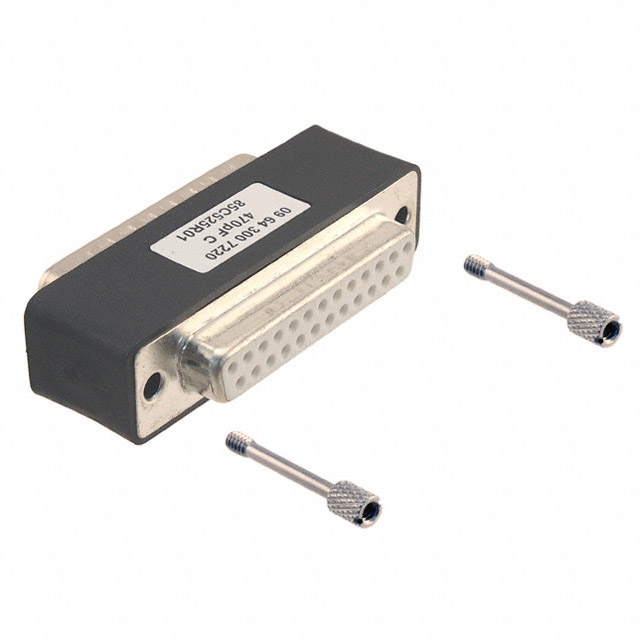

Adapter Connector D-Sub, 25 Pin Female To D-Sub, 25 Pin Male Free Hanging (In-Line)
Technical Specifications
Parameters and characteristics for this part
| Specification | 09643007220 |
|---|---|
| Connector Style | Connector Saver |
| Convert From (Adapter End) Pin Count | 25 |
| Convert From (Adapter End) Pin Gender | Male |
| Convert From (Adapter End) Type | D-Sub |
| Convert To (Adapter End) | Pin Female, D-Sub |
| Convert To (Adapter End) Pin Count | 25 pins |
| Current Rating | 6.5 A |
| Features | Filter |
| Housing Color | Black |
| Includes | Jack Screws, Connector |
| Includes Total Count | 3 pcs |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -20 °C |
| Voltage Rating | 100 VAC |
