Description
General part information

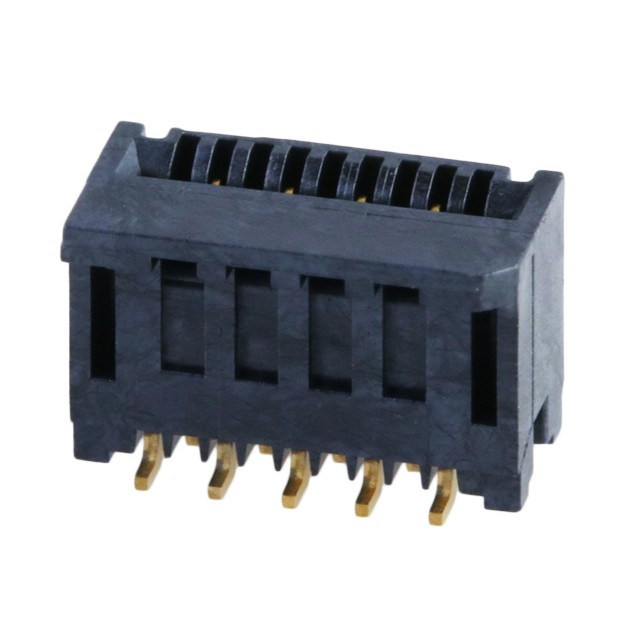

0781190920
CONN FFC FPC VERT 9POS 0.5MM SMD
Technical Specifications
Parameters and characteristics for this part
| Specification | 0781190920 |
|---|---|
| Cable End Type | Tapered |
| Connector/Contact Type | Contacts, 1 Sided, Vertical |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FFC, FPC |
| Height Above Board | 0.161 in |
| Housing Material | Glass Filled, LCP, Liquid Crystal Polymer |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 9 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.02 in |
| Termination | Solder |
| Voltage Rating | 50 V |
