Specification	55A0812-22-6

Cable Type	Up, Hook, Dual Wall
Conductor Material	Copper, Silver Coated
Conductor Strand Count	19
Conductor Strand Gauge	34 AWG
Jacket (Insulation) Diameter	0.043 in
Jacket (Insulation) Material	Ethylene Tetrafluoroethylene (ETFE)
Jacket Color	Blue
Length	5000 ft
Operating Temperature (Max)	200 °C
Operating Temperature (Min)	-65 °C
Qualification	MIL-W-22759, MIL-C-27500
Voltage	600 V
Wire Gauge	22 AWG

55A0812 Series

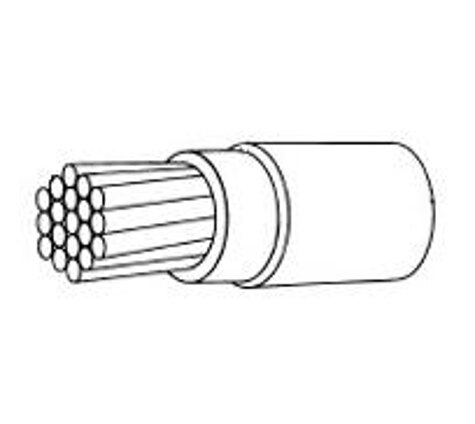

Hook-up Wire 55A0812-22-6 PRICE PER FOOT

Part	Conductor Strand Gauge	Conductor Strand Count	Jacket (Insulation) Material	Length	Jacket Color	Voltage	Wire Gauge	Jacket (Insulation) Diameter	Cable Type	Qualification	Conductor Material	Operating Temperature (Max)	Operating Temperature (Min)	Jacket (Insulation) Thickness
TE Connectivity AMP Connectors 55A0812-24-6	36	19	Ethylene Tetrafluoroethylene (ETFE)	5000 ft	Blue	600 V	24 AWG	0.045 in	Dual Wall Hook Up	MIL-C-27500 MIL-W-22759	Copper Silver Coated	200 °C	-65 °C
TE Connectivity AMP Connectors 55A0812-2-96CS2654	30 AWG	665	Ethylene Tetrafluoroethylene (ETFE) Irradiated		Blue Stripe White	600 V	2 AWG	0.408 in	Dual Wall Hook Up	MIL-C-27500 MIL-W-22759	Copper Silver Coated	200 °C	-65 °C	0.009 in
TE Connectivity AMP Connectors 55A0812-14-9	27 AWG	19	Ethylene Tetrafluoroethylene (ETFE)		White	600 V	14 AWG	0.094 in	Dual Wall Hook Up	MIL-C-27500 MIL-W-22759	Copper Silver Coated	200 °C	-65 °C
TE Connectivity AMP Connectors 55A0812-24-7	36	19	Ethylene Tetrafluoroethylene (ETFE) Irradiated	5000 ft	Violet	600 V	24 AWG	0.045 in	Dual Wall Hook Up	MIL-C-27500 MIL-W-22759	Copper Silver Coated	200 °C	-65 °C	0.009 in
TE Connectivity AMP Connectors 55A0812-12-4	28 AWG	37	Ethylene Tetrafluoroethylene (ETFE) Irradiated		Yellow	600 V	12 AWG	0.111 in	Dual Wall Hook Up	MIL-C-27500 MIL-W-22759	Copper Silver Coated	200 °C	-65 °C	0.009 in
TE Connectivity AMP Connectors 55A0812-22-96CS2654	34 AWG	19	Ethylene Tetrafluoroethylene (ETFE) Irradiated		Blue Stripe White	600 V	22 AWG	0.05 in	Dual Wall Hook Up	MIL-C-27500 MIL-W-22759	Copper Silver Coated	200 °C	-65 °C	0.009 in
TE Connectivity AMP Connectors 55A0812-16-9	29 AWG	19	Ethylene Tetrafluoroethylene (ETFE)		White	600 V	16 AWG	0.077 in	Dual Wall Hook Up	MIL-C-27500 MIL-W-22759	Copper Silver Coated	200 °C	-65 °C
TE Connectivity AMP Connectors 55A0812-20-96CS2654	32 AWG	19	Ethylene Tetrafluoroethylene (ETFE) Irradiated		Blue Stripe White	600 V	20 AWG	0.058 in	Dual Wall Hook Up	MIL-C-27500 MIL-W-22759	Copper Silver Coated	200 °C	-65 °C	0.009 in
TE Connectivity AMP Connectors 55A0812-24-8	36	19	Ethylene Tetrafluoroethylene (ETFE)	5000 ft	Gray	600 V	24 AWG	0.045 in	Dual Wall Hook Up	MIL-C-27500 MIL-W-22759	Copper Silver Coated	200 °C	-65 °C
TE Connectivity AMP Connectors 55A0812-20-1	32 AWG	19	Ethylene Tetrafluoroethylene (ETFE)		Brown	600 V	20 AWG	0.05 in	Dual Wall Hook Up	MIL-C-27500 MIL-W-22759	Copper Silver Coated	200 °C	-65 °C
