Description
General part information

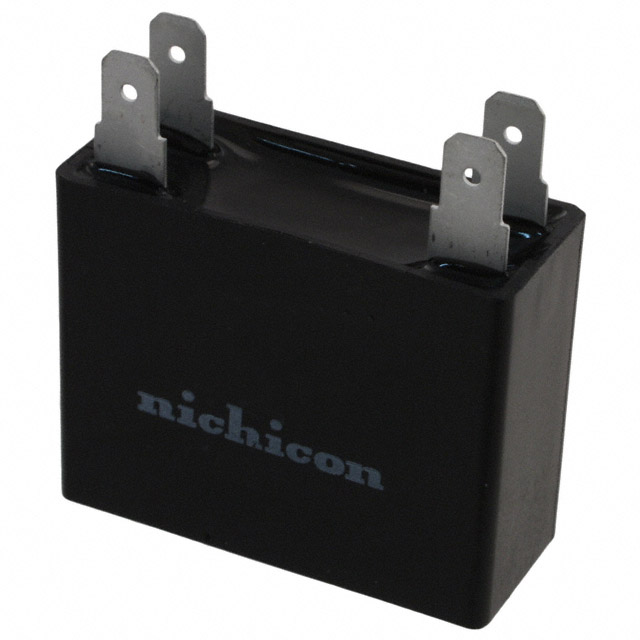

EEC2G305HQA403
3 µF Film Capacitor 400V Polypropylene (PP), Metallized Rectangular Box
Technical Specifications
Parameters and characteristics for this part
| Specification | EEC2G305HQA403 |
|---|---|
| Applications | Motor Run |
| Capacitance | 3 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 1.181 in |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Rectangular Box |
| Size / Dimension Length | 1.457 in |
| Size / Dimension Width | 0.61 in |
| Termination | Disconnect, Quick Connect |
| Tolerance (Negative) | 5 % |
| Tolerance (Positive) | 10 % |
| Voltage Rating - AC | 400 Vpk |
