LCCA31001-M3
ActivePasternack
FIRE RATED LOW PIM 7/16 DIN MALE
LCCA31001-M3
ActivePasternack
FIRE RATED LOW PIM 7/16 DIN MALE
Description
General part information
LCCA31001-M3

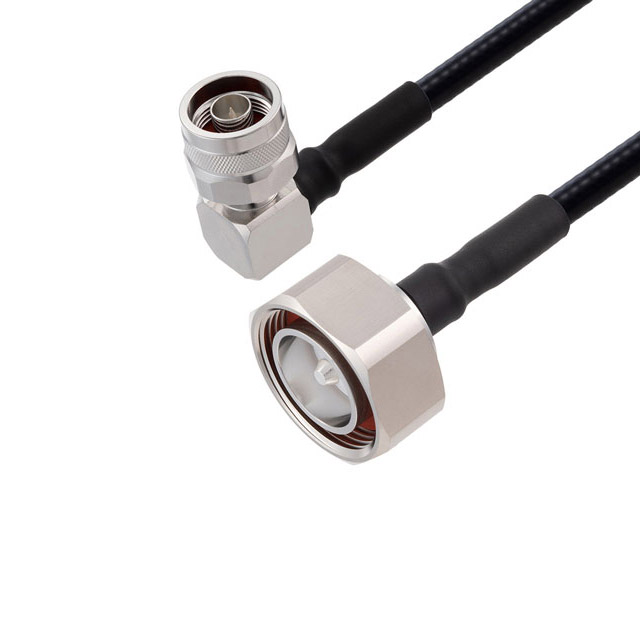

Cable Assembly Coaxial 7/16 DIN to N-Type SPF-250 118.1" (3.0m) 9.8'
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA31001-M3 |
|---|---|
| 1st Connector | 7/16 Plug |
| 1st Connector - Type | Plug |
| 1st Connector Dimension (1) | 7 mm |
| 1st Connector Dimension (2) | 16 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | Right Angle, N-Type Plug |
| 2nd Connector Mounting Type | Right Angle, Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | SPF |
| Cable Type Size | 250 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length | 118.1 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | 7/16 DIN to N-Type |
