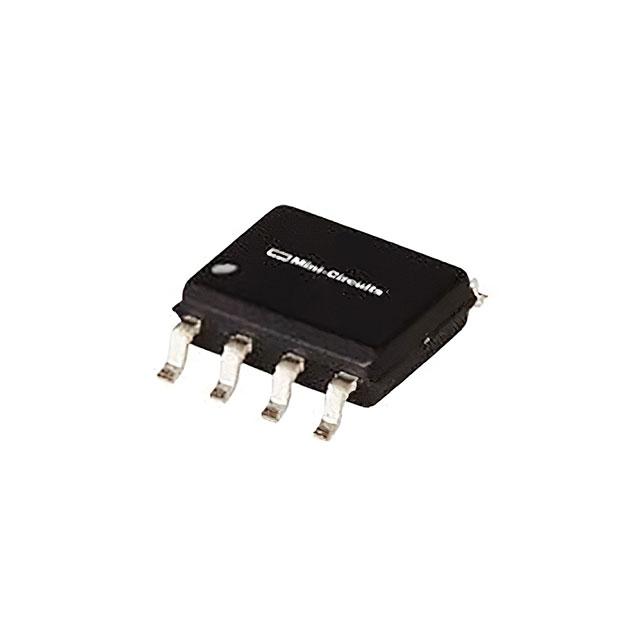

BP2G1+
ActiveMini-Circuits
RF PWR DVDR 1.2GHZ-2GHZ 8SOIC
BP2G1+
ActiveMini-Circuits
RF PWR DVDR 1.2GHZ-2GHZ 8SOIC
Description
General part information
BP2G1+
RF Power Divider 1.2 GHz ~ 2 GHz Isolation (Min) 10dB, 1.3 VSWR (Typ), 3° Imbalance (Max) 8-SOIC (0.154", 3.90mm Width)
Technical Specifications
Parameters and characteristics for this part
| Specification | BP2G1+ |
|---|---|
| Frequency (Max) | 2 GHz |
| Frequency (Min) | 1.2 GHz |
| Imbalance (Max) | 3 ° |
| Insertion Loss | 0.6 dB |
| Isolation (Min) | 10 dB |
| Package Length | 0.154 in |
| Package Name | 8-SOIC |
| Package Width | 3.9 mm |
| VSWR (Max) | 1.3 |
