FODZSC-03
ActivePasternack
CA SC-SC 62.5/125 DPLX LSZH 3M
FODZSC-03
ActivePasternack
CA SC-SC 62.5/125 DPLX LSZH 3M
Description
General part information
FODZSC-03

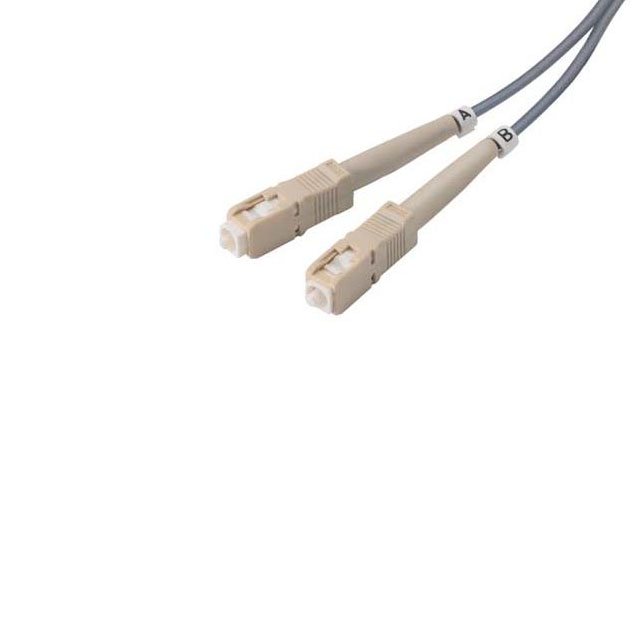

Cable Fiber Optic SC (2) To SC (2) 62.5/125 9.8' (3.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | FODZSC-03 |
|---|---|
| 1st Connector | SC |
| 1st Connector Quantity | 2 |
| 2nd Connector | SC |
| 2nd Connector Count | 2 pcs |
| Cable Type | Fiber Patch |
| Color - Cable | Gray |
| Color - Connectors | Beige |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 62.5 µm |
| Jacket (Insulation) Material | Low Smoke Zero Halogen (LSZH) |
| Length - Overall | 9.8 ft |
| Type | OM1, Multimode |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
