1425639
ActivePhoenix Contact

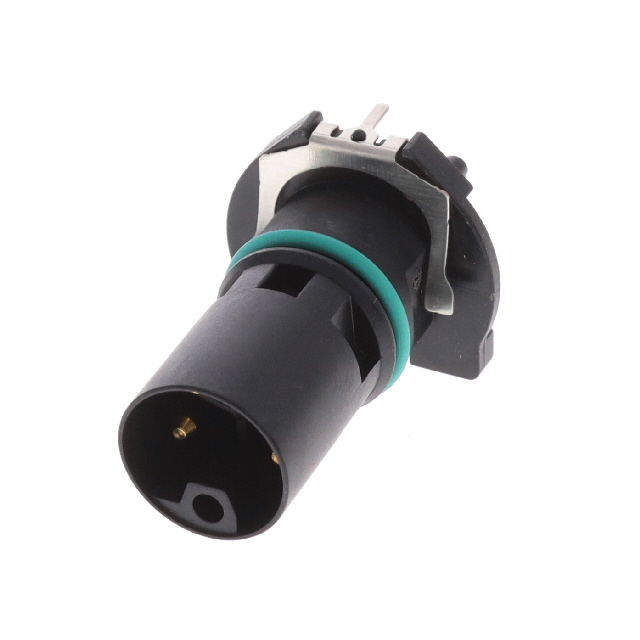

SENSOR CONN, PLUG, 4POS, M12, PCB ROHS COMPLIANT: YES
1425639
ActivePhoenix Contact
SENSOR CONN, PLUG, 4POS, M12, PCB ROHS COMPLIANT: YES
Description
General part information
1425639
4 (Power) Position Circular Connector Insert, Male Pins Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 1425639 |
|---|---|
| Connector Type | Insert, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Zinc |
| Current Rating | 16 A |
| Features | Requires Shell, Board Guide, Insert Only |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | Nylon 4/T, Polyamide, PA4T |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Orientation | L |
| Position Types | Power |
| Shell Size - Insert | M12-4 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 63 V |
