Description

General part information

RX200 Series

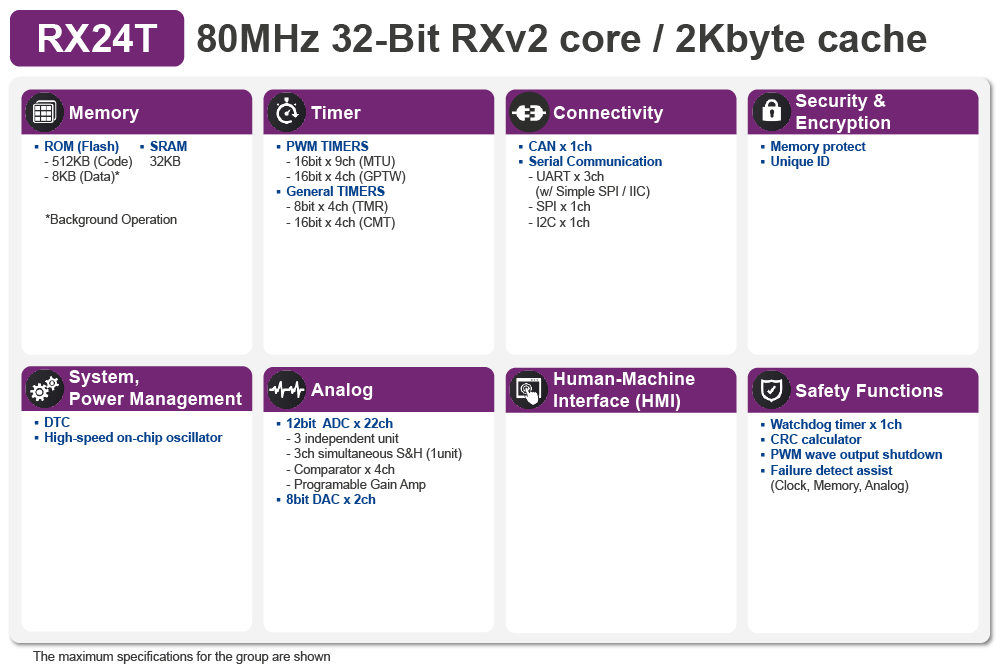

The RX24T Group is a 32-bit microcontroller suited for dual inverter control that has a built-in Floating-Point Unit (FPU) which enables it to easily program complex inverter control algorithms.

Technical Specifications

Parameters and characteristics for this part

Specification	R5F524T8ADFN#30

A/D Channels	17 count
A/D Resolution (bits)	12 bit
Connectivity	SCI, SPI, I2C
Core Processor	RXv2
Core Size (Bit Width)	32 Bit
D/A Channels	1 count
D/A Resolution (bits)	8 bit
EEPROM Size (Depth)	8 K
EEPROM Size (Width)	8 bit
Mounting Type	Surface Mount
Number of I/O	60
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Oscillator Type	Internal
Package / Case	80-LQFP
Package Length	12 mm
Package Name	80-LFQFP
Package Width	12 mm
Peripherals	WDT, DMA, LVD, PWM, POR
Program Memory Depth (128KB)	128 K
Program Memory Size	128KB
Program Memory Type	FLASH
Program Memory Width (128KB)	8
RAM Size Depth	16 K
RAM Size Width	8 bit
Speed	80 MHz
Voltage - Supply (Vcc/Vdd) Maximum	5.5 V
Voltage - Supply (Vcc/Vdd) Minimum	2.7 V

RX200 Series

...

Part	RAM Size Depth	RAM Size Width	EEPROM Size (Width)	EEPROM Size (Depth)	Core Processor	Operating Temperature (Min)	Operating Temperature (Max)	Program Memory Width	Program Memory Size	Program Memory Depth	Number of I/O	Oscillator Type	Connectivity	Speed	Package / Case	Core Size (Bit Width)	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Package Width	Package Name	Package Length	Peripherals	Mounting Type	Program Memory Type	A/D Channels	D/A Resolution (bits)	D/A Channels	A/D Resolution (bits)	Program Memory Depth (128KB)	Program Memory Size	Program Memory Width (128KB)
Renesas Electronics Corporation R5F526TFBDFP#10	64 K	8 bit	8 bit	16 K	RXv3	-40 °C	85 °C	8 bit	512 KB	512 K	82	Internal	CANbus I2C SCI SPI UART USART	120 MHz	100-LQFP	32 Bit	2.7 V	5.5 V	14 mm	100-LFQFP	14 mm	DMA LVD POR PWM WDT	Surface Mount	FLASH	22 count	12 bit	2 count	12 bit
Renesas Electronics Corporation R5F526TFDDFP#50	64 K	8 bit	8 bit	16 K	RXv3	-40 °C	85 °C	8 bit	512 KB	512 K	82	Internal	CANbus I2C SCI SPI UART USART	120 MHz	100-LQFP	32 Bit	2.7 V	5.5 V	14 mm	100-LFQFP	14 mm	DMA LVD POR PWM WDT	Surface Mount	FLASH	22 count	12 bit	2 count	12 bit
Renesas Electronics Corporation R5F526TBDDFN#50	64 K	8 bit	8 bit	16 K	RXv3	-40 °C	85 °C	8 bit	256 KB	256 K	62	Internal	CANbus I2C SCI SPI UART USART	120 MHz	80-LQFP	32 Bit	2.7 V	5.5 V	12 mm	80-LFQFP	12 mm	DMA LVD POR PWM WDT	Surface Mount	FLASH	19 count	12 bit	2 count	12 bit
Renesas Electronics Corporation R5F526TFCGFL#50	64 K	8 bit	8 bit	16 K	RXv3	-40 °C	105 °C	8 bit	512 KB	512 K	37	Internal	CANbus I2C SCI SPI UART USART	120 MHz	48-LQFP	32 Bit	2.7 V	5.5 V	7 mm	48-LFQFP	7 mm	DMA LVD POR PWM WDT	Surface Mount	FLASH	10 count	12 bit	2 count	12 bit
Renesas Electronics Corporation R5F526T8ADFM#10	48 K	8 bit	8 bit	16 K	RXv3	-40 °C	85 °C				49	Internal	CANbus I2C SCI SPI UART USART	120 MHz	64-LQFP	32 Bit	2.7 V	5.5 V	10 mm	64-LFQFP	10 mm	DMA LVD POR PWM WDT	Surface Mount	FLASH	15 count	12 bit	2 count	12 bit	128 K	128KB	8
Renesas Electronics Corporation R5F526T9BDFL#50	64 K	8 bit	8 bit	16 K	RXv3	-40 °C	85 °C				37	Internal	CANbus I2C SCI SPI UART USART	120 MHz	48-LQFP	32 Bit	2.7 V	5.5 V	7 mm	48-LFQFP	7 mm	DMA LVD POR PWM WDT	Surface Mount	FLASH	10 count	12 bit	2 count	12 bit	128 K	128KB	8
Renesas Electronics Corporation R5F526TACGFM#30	48 K	8 bit	8 bit	16 K	RXv3	-40 °C	105 °C	8 bit	256 KB	256 K	49	Internal	CANbus I2C SCI SPI UART USART	120 MHz	64-LQFP	32 Bit	2.7 V	5.5 V	10 mm	64-LFQFP	10 mm	DMA LVD POR PWM WDT	Surface Mount	FLASH	15 count	12 bit	2 count	12 bit
Renesas Electronics Corporation R5F526TFCDFP#10	64 K	8 bit	8 bit	16 K	RXv3	-40 °C	85 °C	8 bit	512 KB	512 K	82	Internal	CANbus I2C SCI SPI UART USART	120 MHz	100-LQFP	32 Bit	2.7 V	5.5 V	14 mm	100-LFQFP	14 mm	DMA LVD POR PWM WDT	Surface Mount	FLASH	22 count	12 bit	2 count	12 bit
Renesas Electronics Corporation R5F526TFBGFL#50	64 K	8 bit	8 bit	16 K	RXv3	-40 °C	105 °C	8 bit	512 KB	512 K	37	Internal	CANbus I2C SCI SPI UART USART	120 MHz	48-LQFP	32 Bit	2.7 V	5.5 V	7 mm	48-LFQFP	7 mm	DMA LVD POR PWM WDT	Surface Mount	FLASH	10 count	12 bit	2 count	12 bit
Renesas Electronics Corporation R5F526TACDFM#10	48 K	8 bit	8 bit	16 K	RXv3	-40 °C	85 °C	8 bit	256 KB	256 K	49	Internal	CANbus I2C SCI SPI UART USART	120 MHz	64-LQFP	32 Bit	2.7 V	5.5 V	10 mm	64-LFQFP	10 mm	DMA LVD POR PWM WDT	Surface Mount	FLASH	15 count	12 bit	2 count	12 bit

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

RX24T Group Datasheet Rev.2.00

R5F524T8ADFN#30 | Datasheet
