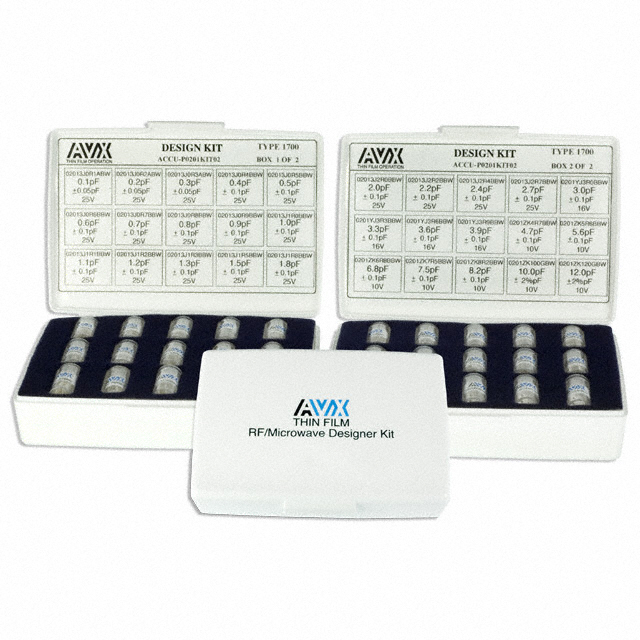

ACCU-P 0201KIT02
ActiveKYOCERA AVX
CAP KIT THIN FILM 0.1-12PF 600PC
ACCU-P 0201KIT02
ActiveKYOCERA AVX
CAP KIT THIN FILM 0.1-12PF 600PC
Description
General part information
ACCU-P 0201KIT02
Thin Film Capacitor Kit 0.1pF ~ 12pF 10 ~ 25V Surface Mount 600 Pieces (30 Values - 20 Each)
Technical Specifications
Parameters and characteristics for this part
| Specification | ACCU-P 0201KIT02 |
|---|---|
| Applications | High Frequency, RF, Microwave |
| Capacitance Range (Max) | 12 pF |
| Capacitance Range (Min) | 0.1 pF |
| Features | High Q, Low Loss |
| Kit Type | Thin Film |
| Mounting Type | Surface Mount |
| Packages Included | 0201 (0603 Metric) |
| Quantity | 600 pcs |
| Quantity per Value | 20 Each |
| Quantity Values | 30 Values |
| Tolerance | ±2%, ±0.1pF, ±0.05pF |
| Tolerance | 0.1 pF, 2 %, 0.05 pF |
| Voltage - Rated (Max) | 25 V |
| Voltage - Rated (Min) | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
