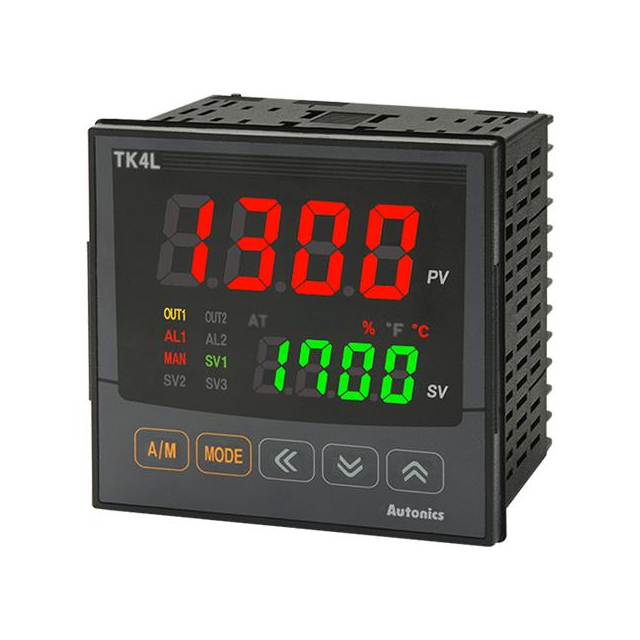

Specification	TK4L-14SN

Communications	Option Cards Available
Control Method	Off, Proportional (PID), On
Display Characters - Height	0.866 in
Display Characters - Height (Option 2)	0.551 in
Display Type	LED - Dual Color Characters
Features	Limit Function
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65, IP50
Input Current (Max)	20 mA
Input Current (Max) (Range 1)	20 mA
Input Current (Min)	0 mA
Input Current (Min) (Range 1)	0 mA
Input Temperature (Max)	9999 °C
Input Temperature (Max) (Range 1)	9999 °C
Input Temperature (Min)	-1999 °C
Input Temperature (Min) (Range 1)	-1999 °C
Input Voltage (Max) (Range 1)	10 VDC
Input Voltage (Max) (Range 2)	50 mV
Input Voltage (Min) (Range 1)	0 VDC
Input Voltage (Min) (Range 2)	0 mV
Maximum Number of Characters Per Row	4 characters
Minimum Number of Characters Per Row	4 characters
Mounting Type	Panel Mount
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-10 °C
Output Type	Voltage (External SSR)
Panel Cutout Length	92 mm
Panel Cutout Shape	Square
Panel Cutout Width	92 mm
Termination Style	Screw Terminal
Type	S, R, Process, U), G, PLII, J, L, K, T, C, N, Temperature Controller (Type B, E
Voltage - Supply (Maximum)	240 VAC
Voltage - Supply (Minimum)	100 VAC
