Description
General part information

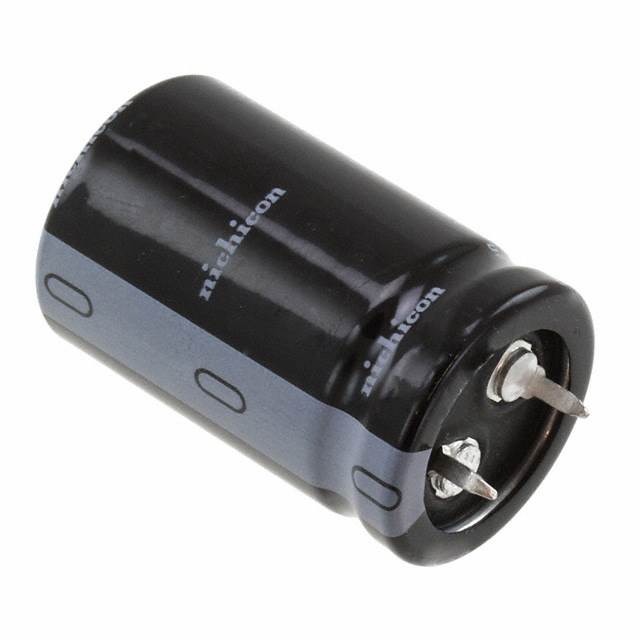

LQSW6151MELZ35
150 µF 420 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | LQSW6151MELZ35 |
|---|---|
| Applications | General Purpose |
| Capacitance | 150 µF |
| Height - Seated (Max) | 1.457 in |
| Lead Spacing | 0.394 in |
| Lifetime | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can - Snap-In, Radial |
| Polarization | Polar |
| Ripple Current | 840 mA, 1.2012 A |
| Size / Dimension Diameter | 0.866 in |
| Tolerance | 20 % |
| Voltage - Rated | 420 V |
