Description
General part information

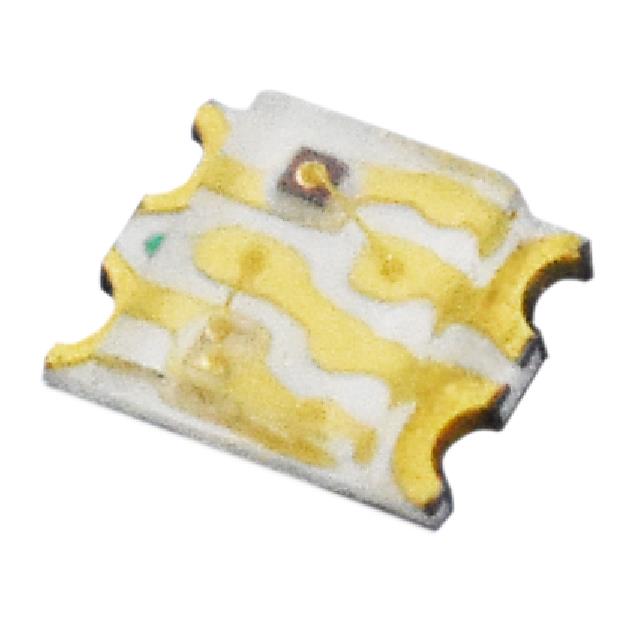

SP0605D-2C
Red, Yellow-Green 625nm Red, 570nm Yellow-Green LED Indication - Discrete 1.85V Red, 1.85V Yellow-Green 0605 (1613 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | SP0605D-2C |
|---|---|
| Color | Yellow-Green, Red |
| Current - Test | 5 mA |
| Height (Max) | 0.5 mm |
| Lens Length | 1.1 mm |
| Lens Style | Rectangle, Flat Top |
| Lens Width | 1.25 mm |
| Millicandela Rating ({{color}}) | 14 mcd |
| Millicandela Rating (Red) | 27.5 mcd |
| Millicandela Rating (Yellow-Green) | 14 mcd |
| Millicandela Rating Colors | Red, Yellow-Green |
| Mounting Type | Surface Mount |
| Package / Case | 0605 (1613 Metric) |
| Package Name | 0605 |
| Size / Dimension Length | 1.6 mm |
| Size / Dimension Width | 1.25 mm |
| Viewing Angle | 130 ° |
| Voltage - Forward (Vf) (Typ) (Value 1) | 1.85 V |
| Voltage - Forward (Vf) (Typ) (Value 2) | 1.85 V |
| Wavelength - Dominant | 625nm Red, 570nm Yellow-Green |
| Wavelength - Dominant (Red) | 625 nm |
| Wavelength - Dominant (Yellow-Green) | 570 nm |
| Wavelength - Dominant Color | Yellow-Green, Red |
