Description
General part information

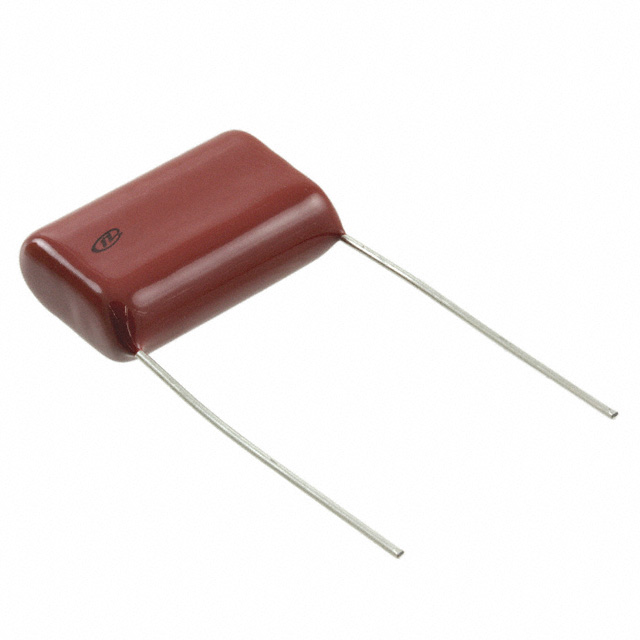

QXL2E474KTPT
0.47 µF Film Capacitor 250V Polyester, Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | QXL2E474KTPT |
|---|---|
| Applications | Switching, High Frequency |
| Capacitance | 0.47 µF |
| Dielectric Material | Polyester, Metallized |
| Height - Seated (Max) | 0.776 in |
| Lead Spacing | 0.886 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Size / Dimension Length | 1.004 in |
| Size / Dimension Width | 0.37 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
