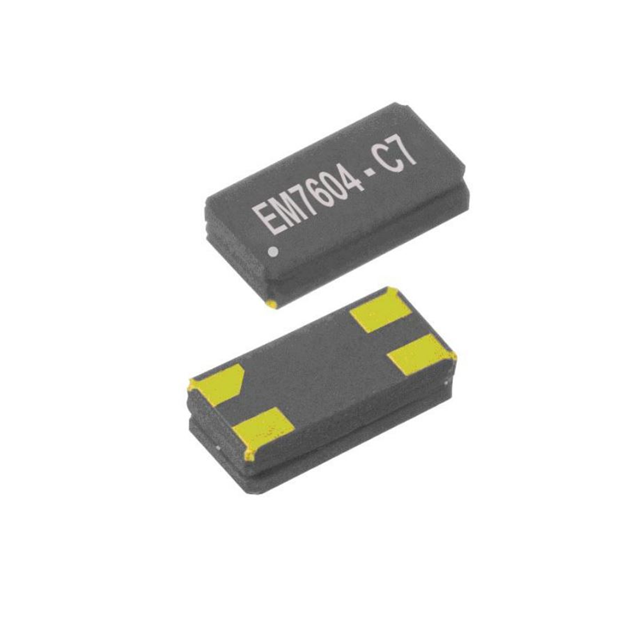

EM7604V20SCP4B+

Active

EM Microelectronic

CRYSTAL 32.6780KHZ SMD

Search across all available documentation for this part.

Active

EM Microelectronic

CRYSTAL 32.6780KHZ SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

CRYSTAL 32.6780KHZ SMD

Part	Type	Current - Supply (Max)	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Package / Case	Output	Operating Temperature [Min]	Operating Temperature [Max]	Frequency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Function	Base Resonator	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]
EM Microelectronic EM7604V20SCP4B+	XO (Standard)	1 mA	1.2 V	5.5 V	Surface Mount	4-SMD, No Lead	CMOS	-10 °C	85 °C	32.768 kHz	1.5 mm	3.2 mm	0.126 in	0.059 "	Enable/Disable	Crystal	0.039 "	1 mm
EM Microelectronic EM7604V00SP6B+	XO (Standard)	1 mA	1.2 V	5.5 V	Surface Mount	SOT-23-6	CMOS	-10 °C	85 °C	32.768 kHz		2.9 mm	0.114 in	0.063 in	Enable/Disable	Crystal		0.057 in	1.45 mm	1.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

32.768 kHz XO (Standard) CMOS Oscillator 1.2V ~ 5.5V Enable/Disable 4-SMD, No Lead
