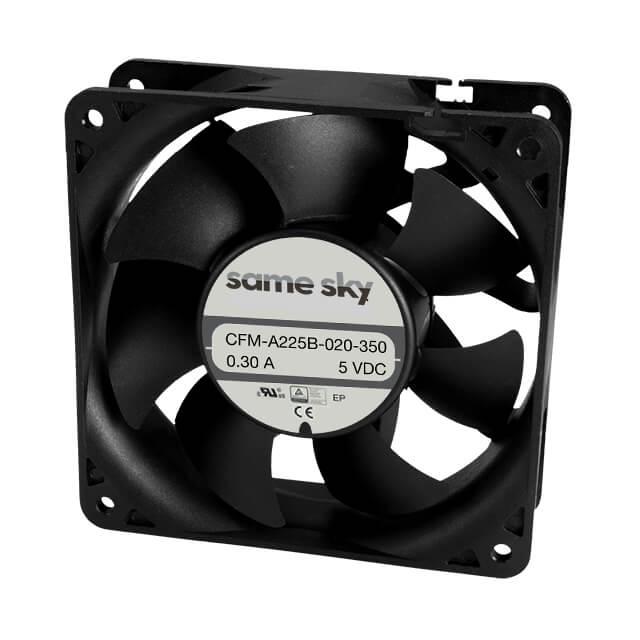

CFM-A225B-020-350-20
ActiveSame Sky (Formerly CUI Devices)
FAN AXIAL 120X25.4MM 5VDC WIRE
CFM-A225B-020-350-20
ActiveSame Sky (Formerly CUI Devices)
FAN AXIAL 120X25.4MM 5VDC WIRE
Description
General part information
CFM-A225B-020-350-20
Fan Tubeaxial 5VDC Square - 120mm L x 120mm H Ball 69.7 CFM (1.95m³/min) 3 Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | CFM-A225B-020-350-20 |
|---|---|
| Air Flow | 69.7 CFM |
| Approval Agency | cURus, TUV, CE |
| Bearing Type | Ball |
| Current Rating | 580 mA |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Speed Sensor (Tach) |
| Lifetime | 70000 Hrs |
| Material - Blade | PBT, Polybutylene Terephthalate |
| Material - Frame | Polybutylene Terephthalate (PBT) |
| Noise | 37.8 dB |
| Operating Temperature (Max) | 158 °F |
| Operating Temperature (Min) | 14 °F |
| Power (Watts) | 2.85 W |
| RPM | 2000 RPM |
| Size / Dimension Height | 120 mm |
| Size / Dimension Length | 120 mm |
| Size / Dimension Shape | Square |
| Static Pressure | 0.1 in H2O |
| Termination | 3 Wire Leads |
| Termination Leads Count | 3 |
| Termination Type | Wire Leads |
| Voltage - Rated | 5 VAC |
| Voltage Range (Max) | 5.5 VDC |
| Voltage Range (Min) | 4.5 VDC |
| Width | 1 in |
