CA-QPQPA020
ActivePasternack
CA195 QMA PLUG/QMA PLUG 20FT
CA-QPQPA020
ActivePasternack
CA195 QMA PLUG/QMA PLUG 20FT
Description
General part information
CA-QPQPA020

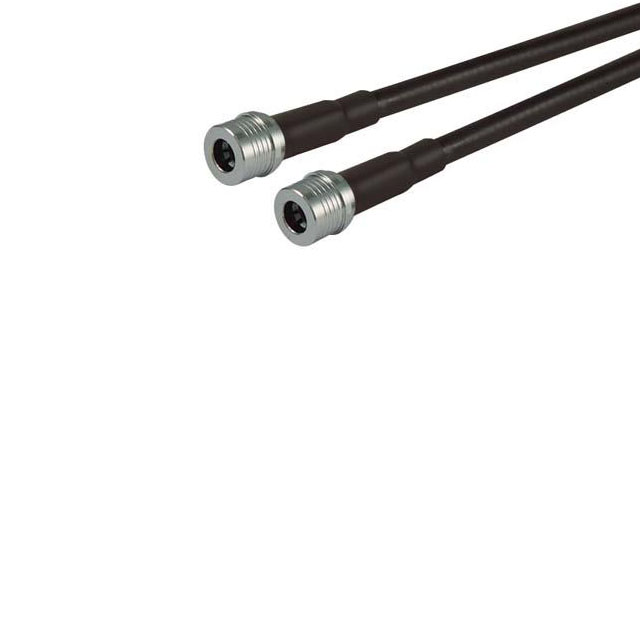

Cable Assembly Coaxial QMA to QMA LMR 195 240.0" (6.1m) 20.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | CA-QPQPA020 |
|---|---|
| 1st Connector | QMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | QMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR |
| Cable Type Size | 195 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Length | 240 in |
| Overall Impedance | 50 Ohms |
| Style | QMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
