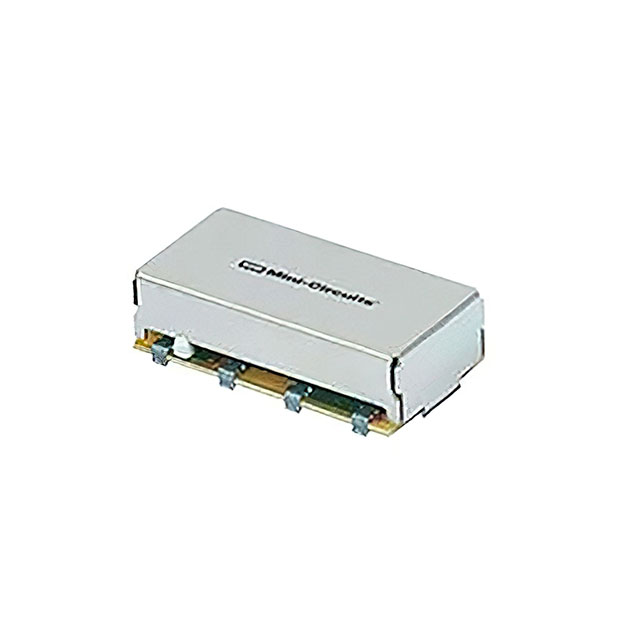

JS4PS-1+
ActiveMini-Circuits
RF PWR DVDR 80MHZ-520MHZ 8SMD
JS4PS-1+
ActiveMini-Circuits
RF PWR DVDR 80MHZ-520MHZ 8SMD
Description
General part information
JS4PS-1+
RF Power Divider 80 MHz ~ 520 MHz Isolation (Min) 20dB, 5° Imbalance (Max) 8-SMD, J-Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | JS4PS-1+ |
|---|---|
| Frequency (Max) | 520 MHz |
| Frequency (Min) | 80 MHz |
| Imbalance (Max) | 5 ° |
| Insertion Loss | 0.8 dB |
| Isolation (Min) | 20 dB |
| Package / Case | J-Lead, 8-SMD |
