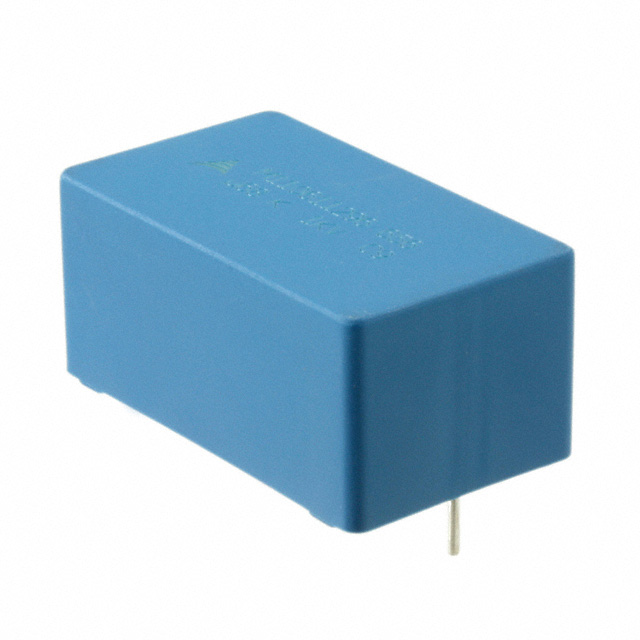

B32656A7474K000
ActiveEPCOS - TDK Electronics
CAP FILM 0.47UF 10% 1.25KVDC RAD
B32656A7474K000
ActiveEPCOS - TDK Electronics
CAP FILM 0.47UF 10% 1.25KVDC RAD
Description
General part information
B32656A7474K000
0.47 µF Film Capacitor 500V 1250V (1.25kV) Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | B32656A7474K000 |
|---|---|
| Applications | DV/DT, DC Link, High Pulse, DC Filtering |
| Capacitance | 0.47 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 1.28 in |
| Lead Spacing | 1.476 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 1.654 in |
| Size / Dimension Width | 0.709 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 500 V |
| Voltage Rating - DC | 1250 V |
