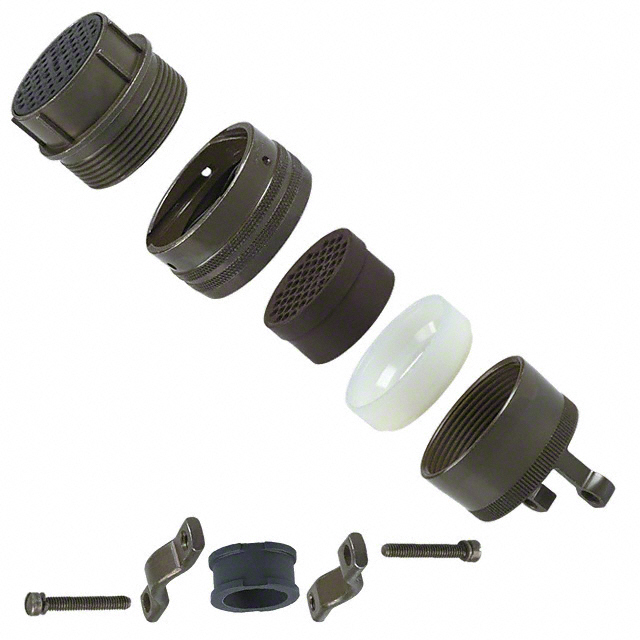

Specification	PT06E-22-55S(SR)

Applications	Industrial, Instrumentation, Military, Mass Transit, Aerospace
Backshell Material, Plating	Olive Drab Cadmium, Aluminum
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Features	Strain Relief
Ingress Protection	Environment Sealed
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Number of Positions	55
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	N (Normal)
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate, Cadmium
Shell Material	Aluminum
Shell Size - Insert (Maximum)	55
Shell Size - Insert (Minimum)	22
Shielding	Unshielded
Termination	Solder Cup

PT06E Series

...

Part	Number of Positions	Shielding	Ingress Protection	Shell Material	Primary Material	Color	Fastening Type	Features	Contact Finish - Mating	Connector Type	Mounting Type	Shell Size - Insert Width	Shell Size - Insert Length	Orientation	Qualification	Operating Temperature (Max)	Operating Temperature (Min)	Shell Finish	Termination	Contact Material	Applications	Insert Material	Backshell Material, Plating	Backshell Material	Plating	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Cable Opening	Voltage Rating
Amphenol Aerospace Operations PT06E-12-10S(SR)	10	Unshielded	Environment Sealed	Aluminum	Metal	Olive Drab	Bayonet Lock	Strain Relief	Gold	Female Sockets Plug	Free Hanging (In-Line)	10 mm	12 mm	N (Normal)	MIL-DTL-26482 Series I	125 °C	-55 °C	Cadmium Olive Drab Chromate	Solder Cup	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military	Neoprene	Aluminum Olive Drab Cadmium
Amphenol Aerospace Operations PT06E18-11PW-476	11	Unshielded	Environment Resistant	Aluminum	Metal	Black	Bayonet Lock		Gold	Male Pins Plug	Free Hanging (In-Line)	11 mm	18 mm	W	MIL-DTL-26482 Series I	125 °C	-55 °C	Black Zinc Cobalt	Solder Cup	Copper Alloy	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Neoprene		Aluminum	Black Zinc Cobalt
Amphenol Aerospace Operations PT06E-16-23S	23	Unshielded	Environment Sealed	Aluminum	Metal	Olive Drab	Bayonet Lock	Backshell Coupling Nut	Gold	Female Sockets Plug	Free Hanging (In-Line)			N (Normal)	MIL-DTL-26482 Series I	125 °C	-55 °C	Cadmium Olive Drab Chromate	Solder Cup	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military	Neoprene	Aluminum Olive Drab Cadmium			23	16 S
Amphenol Aerospace Operations PT06E-8-4S(025)	4	Unshielded	Environment Sealed	Aluminum	Metal	Black	Bayonet Lock	Backshell Coupling Nut	Gold	Female Sockets Plug	Free Hanging (In-Line)	4 mm	8 mm	N (Normal)	MIL-DTL-26482 Series I	125 °C	-55 °C	Black Zinc Cobalt	Solder Cup	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military	Neoprene		Aluminum	Black Zinc Cobalt
Amphenol Aerospace Operations PT06E-10-5P(SR)	5	Unshielded	Environment Sealed	Aluminum	Metal	Olive Drab	Bayonet Lock	Strain Relief	Gold	Male Pins Plug	Free Hanging (In-Line)	5 mm	10 mm	N (Normal)	MIL-DTL-26482 Series I	125 °C	-55 °C	Cadmium Olive Drab Chromate	Solder Cup	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military	Neoprene	Aluminum Olive Drab Cadmium
Amphenol Aerospace Operations PT06E-12-10P(470)	10	Unshielded	Environment Sealed	Aluminum	Metal	Black	Bayonet Lock	Backshell Cable Clamp Coupling Nut	Gold	Male Pins Plug	Free Hanging (In-Line)	10 mm	12 mm	N (Normal)	MIL-DTL-26482 Series I	125 °C	-55 °C	Black Zinc Cobalt	Solder Cup	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military	Neoprene		Aluminum	Black Zinc Cobalt
Amphenol Aerospace Operations PT06E16-8P-SR	8	Unshielded	Environment Resistant	Aluminum	Metal	Olive Drab	Bayonet Lock	Strain Relief	Gold	Male Pins Plug	Free Hanging (In-Line)	8 mm	16 mm	N (Normal)	MIL-DTL-26482 Series I	125 °C	-55 °C	Cadmium Olive Drab Chromate	Solder Cup	Copper Alloy	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Neoprene	Aluminum Olive Drab Cadmium					0.5 in	1000 V
Amphenol Aerospace Operations PT06E8-3S-470	3	Unshielded	Environment Resistant	Aluminum	Metal	Black	Bayonet Lock	Backshell Coupling Nut Strain Relief	Gold	Female Sockets Plug	Free Hanging (In-Line)	3 mm	8 mm	N (Normal)	MIL-DTL-26482 Series I	125 °C	-55 °C	Black Zinc Cobalt	Solder Cup	Copper Alloy	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Neoprene		Aluminum	Black Zinc Cobalt				600 V
Amphenol Aerospace Operations PT06E14-12SX-SR	12	Unshielded	Environment Resistant	Aluminum	Metal	Olive Drab	Bayonet Lock	Strain Relief	Gold	Female Sockets Plug	Free Hanging (In-Line)	12 mm	14 mm	X	MIL-DTL-26482 Series I	125 °C	-55 °C	Cadmium Olive Drab Chromate	Solder Cup	Copper Alloy	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Neoprene	Aluminum Olive Drab Cadmium
Amphenol Aerospace Operations PT06E20-39S-SR	39	Unshielded	Environment Resistant	Aluminum	Metal	Olive Drab	Bayonet Lock	Strain Relief	Gold	Female Sockets Plug	Free Hanging (In-Line)			N (Normal)	MIL-DTL-26482 Series I	125 °C	-55 °C	Cadmium Olive Drab Chromate	Solder Cup	Copper Alloy	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Neoprene	Aluminum Olive Drab Cadmium			39	20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

10-101949-010

Datasheet
