DMC-MR 30-23 BN
ActiveTE Connectivity AMP Connectors
DMC-MR 30-23 BN
DMC-MR 30-23 BN
ActiveTE Connectivity AMP Connectors
DMC-MR 30-23 BN
Description
General part information
DMC-MR 30-23 BN

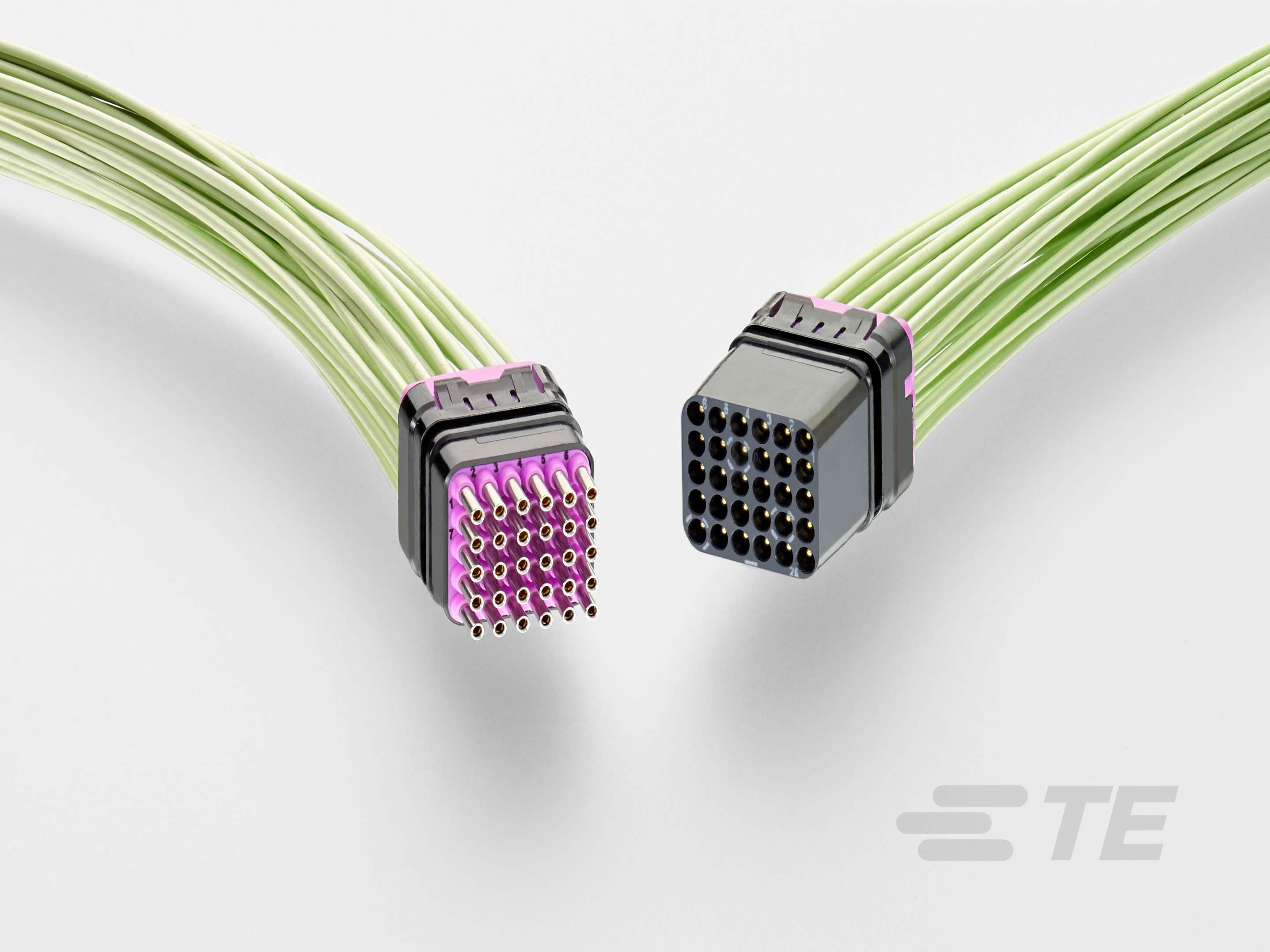

Insert for Contacts, Socket, 30 Pole Configuration, Crimp, Wire-to-Wire, Sealable, 26 – 22 AWG, .15 – .4 mm² Wire, Power, Signal & High Speed Data
Technical Specifications
Parameters and characteristics for this part
| Specification | DMC-MR 30-23 BN |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 30 |
| Number of Rows | 5 |
| Operating Temperature (Max) | 175 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.085 in |
| Row Spacing | 0.085 in |
