Description
General part information
DFR0379

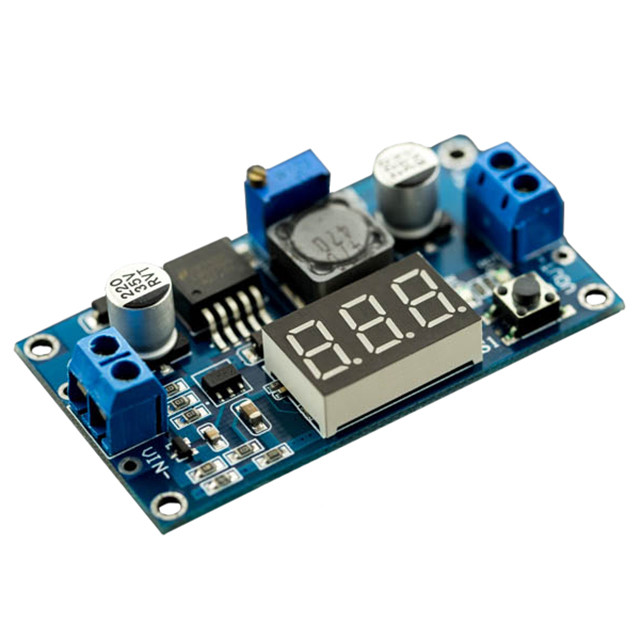

LM2596 - 1 Non-Isolated Output DC/DC, Step Down Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | DFR0379 |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output | 3 A |
| Main Purpose | DC/DC, Step Down |
| Non-Isolated Output Count | 1 count |
| Output Type | Non-Isolated |
| Power - Output | 20 W |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | LM2596 |
| Voltage - Input (Maximum) | 40 V |
| Voltage - Input (Minimum) | 4 V |
| Voltage - Output (Max) | 37 V |
| Voltage - Output (Min) | 1.25 V |
