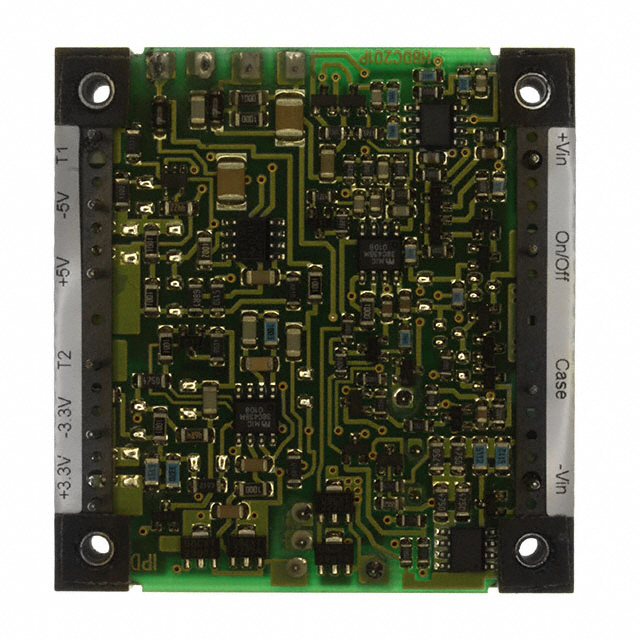

HBD040ZGE-A
ObsoleteBel Fuse Inc.
DC DC CONVERTER 5V 3.3V 40W
HBD040ZGE-A
ObsoleteBel Fuse Inc.
DC DC CONVERTER 5V 3.3V 40W
Description
General part information
HBD040ZGE-A
Isolated Module DC DC Converter 2 Output 5V 3.3V 8A, 12A 34V - 75V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | HBD040ZGE-A |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) Options | 8A, 12A |
| Efficiency | 80 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 10-DIP Module |
| Power (Watts) | 40 W |
| Size / Dimension Height | 0.5 in |
| Size / Dimension Length | 2.4 in |
| Size / Dimension Width | 2.28 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 75 V |
| Voltage - Input (Min) | 34 V |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | 3.3 V |
