27283
ActiveKnowles Syfer

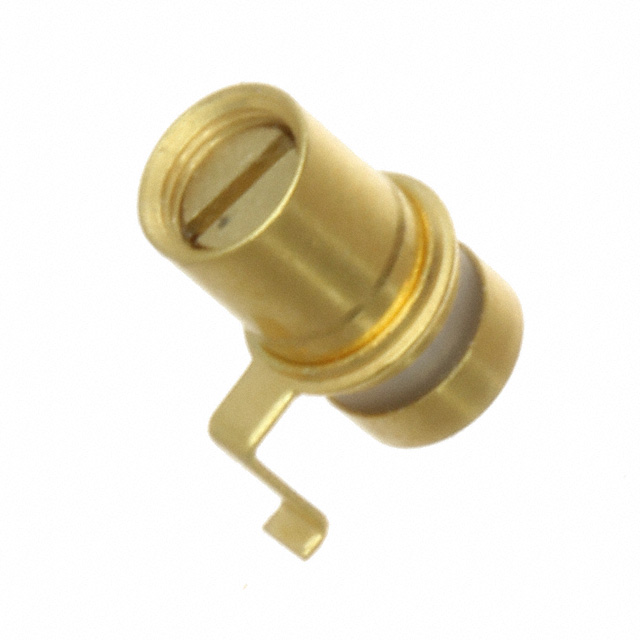

CAP TRIMMER 0.4-2.5PF 500V SMD
27283
ActiveKnowles Syfer
CAP TRIMMER 0.4-2.5PF 500V SMD
Description
General part information
27283
0.4 ~ 2.5pF Trimmer Capacitor 500 V Top Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 27283 |
|---|---|
| Adjustment Type | Top |
| Capacitance Range (Max) | 2.5 pF |
| Capacitance Range (Min) | 0.4 pF |
| Dielectric Material | Sapphire |
| Features | General Purpose |
| Height - Seated (Max) | 0.225 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -65 °C |
| Q | 4000 |
| Size / Dimension Diameter | 0.14 in |
| Voltage - Rated | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
