1410107

Active

Phoenix Contact

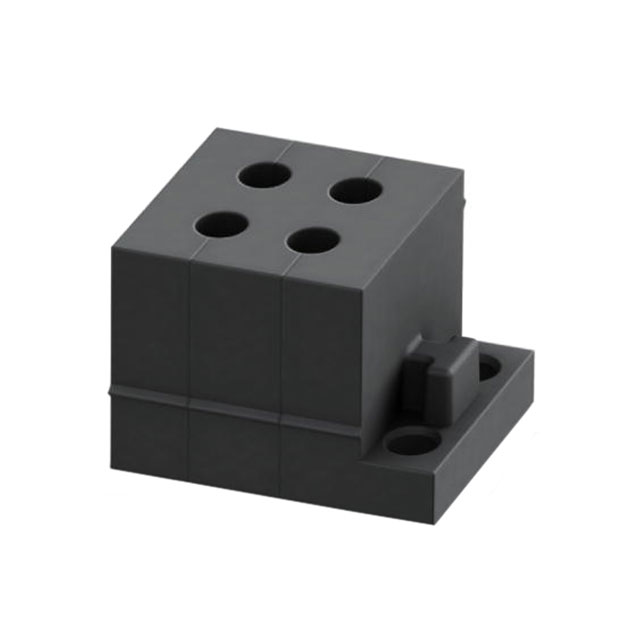

FRAME GROMMET NBR BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1410107

Active

Phoenix Contact

FRAME GROMMET NBR BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.10

Description

General part information

CES-SRG Series

Frame Grommet 0.157" ~ 0.197" (4.00mm ~ 5.00mm) Black

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1410107	CES-SRG Series

Accessory Type	-	Hole Plug
Bushing, Grommet Type	Frame Grommet	Frame Grommet
Color	Black	Black
Diameter - Inside	-	0.512 - 15 mm
Diameter - Inside	-	0.472 - 14 mm
Diameter - Inside	-	0.433 in
Diameter - Inside	-	0.472 in
Diameter - Inside	-	11 mm
Diameter - Inside	-	12 mm
Diameter - Inside	-	12 mm
Diameter - Inside	-	13 mm
Diameter - Inside	-	0.236 "
Diameter - Inside	-	0.276 "
Diameter - Inside [Max] [diameter]	5 mm, 0.197 in	0.079 - 17 mm
Diameter - Inside [Min] [diameter]	4 mm, 0.157 "	0.039 - 16 mm
Features	Locking Latch, Water Resistant, Dust Protected, IP54, Screw Locking	Locking Latch, Water Resistant, Dust Protected, IP54, Screw Locking
For Use With/Related Products	4 Cable Openings	2 ASI Cables Openings (L-R), 1 ASI Cable Opening (R), 2 Cable Openings, Wires, Cable, 4 Cable Openings, PLUSCON CES Sealing Frames, 2 ASI Cables Openings (L-L), 1 ASI Cable Opening (L)
Material	Nitrile Butadiene Rubber (NBR), Halogen Free	Nitrile Butadiene Rubber (NBR), Halogen Free

CES-SRG Series

FRAME GROMMET RUBBER BLACK

Part	Features	Material	For Use With/Related Products	Bushing, Grommet Type	Color	Diameter - Inside [Max] [diameter]	Diameter - Inside [Min] [diameter]	Diameter - Inside [Max] [diameter]	Diameter - Inside [Min] [diameter]	Diameter - Inside [Min]	Diameter - Inside [Max]	Diameter - Inside [Min]	Diameter - Inside [Max]	Diameter - Inside [Min] [diameter]	Diameter - Inside [Max] [diameter]
Phoenix Contact 0801669	Dust Protected, IP54, Locking Latch, Screw Locking, Water Resistant	Halogen Free, Nitrile Butadiene Rubber (NBR)	2 ASI Cables Openings (L-R)	Frame Grommet	Black
Phoenix Contact 0801667	Dust Protected, IP54, Locking Latch, Screw Locking, Water Resistant	Halogen Free, Nitrile Butadiene Rubber (NBR)	1 ASI Cable Opening (R)	Frame Grommet	Black
Phoenix Contact 0801657	Dust Protected, IP54, Locking Latch, Screw Locking, Water Resistant	Halogen Free, Nitrile Butadiene Rubber (NBR)	2 Cable Openings	Frame Grommet	Black	0.197 in, 5 mm	0.157 ", 4 mm
Phoenix Contact 0801633	Dust Protected, IP54, Locking Latch, Screw Locking, Water Resistant	Halogen Free, Nitrile Butadiene Rubber (NBR)	Cable, Wires	Frame Grommet	Black	0.118 in	0.079 in	3 mm	2 mm
Phoenix Contact 1410576	Dust Protected, IP54, Locking Latch, Screw Locking, Water Resistant	Halogen Free, Nitrile Butadiene Rubber (NBR)	Cable, Wires	Frame Grommet	Black
Phoenix Contact 0801617	Dust Protected, IP54, Locking Latch, Screw Locking, Water Resistant	Halogen Free, Nitrile Butadiene Rubber (NBR)	Cable, Wires	Frame Grommet	Black					0.433 in	0.472 in	11 mm	12 mm
Phoenix Contact 0801616	Dust Protected, IP54, Locking Latch, Screw Locking, Water Resistant	Halogen Free, Nitrile Butadiene Rubber (NBR)	Cable, Wires	Frame Grommet	Black			0.512 "	0.472 "					12 mm	13 mm
Phoenix Contact 0801620	Dust Protected, IP54, Locking Latch, Screw Locking, Water Resistant	Halogen Free, Nitrile Butadiene Rubber (NBR)	Cable, Wires	Frame Grommet	Black	0.394 "	0.354 "	10 mm	9 mm
Phoenix Contact 0801618	Dust Protected, IP54, Locking Latch, Screw Locking, Water Resistant	Halogen Free, Nitrile Butadiene Rubber (NBR)	Cable, Wires	Frame Grommet	Black	0.433 "	0.394 "	11 mm	10 mm
Phoenix Contact 0801632	Dust Protected, IP54, Locking Latch, Screw Locking, Water Resistant	Halogen Free, Nitrile Butadiene Rubber (NBR)	Cable, Wires	Frame Grommet	Black	0.157 in	0.118 in	4 mm	3 mm
