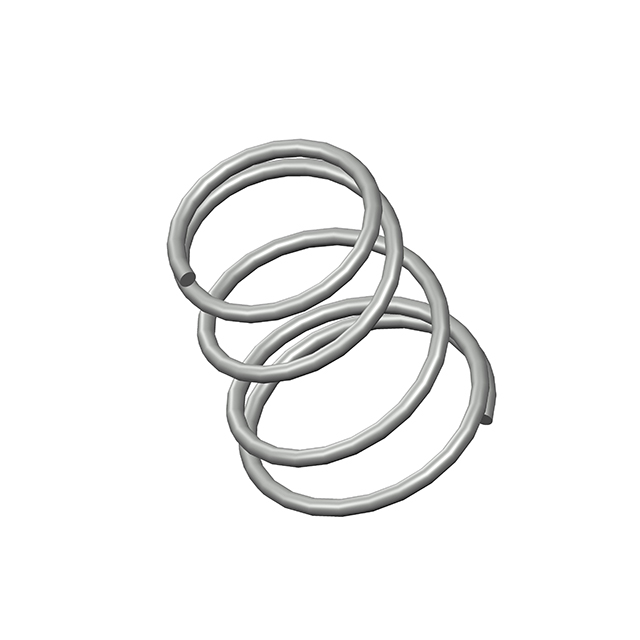

TA-2290CS
ActiveCentury Spring Corp
LO= 1.812, SO= 1.5, W= 0.122
TA-2290CS
ActiveCentury Spring Corp
LO= 1.812, SO= 1.5, W= 0.122
Description
General part information
TA-2290CS
LO= 1.812, SO= 1.5, W= 0.122
Technical Specifications
Parameters and characteristics for this part
| Specification | TA-2290CS |
|---|---|
| Diameter - Inside | 1.26 in |
| Diameter - Large Outside | 1.812 in |
| Diameter - Small Outside | 1.5 in |
| End Style | Closed |
| Finish | Zinc |
| Free Length | 2.25 in |
| Material | Spring Steel |
| Rate (lbs/in) | 39.2 lbs/in |
| Type | Tapered |
| Wire Diameter | 0.122 in |
