CDBD640-HF
ActiveComchip Technology
DIODE SCHOTTKY 40V 3A DPAK
CDBD640-HF
ActiveComchip Technology
DIODE SCHOTTKY 40V 3A DPAK
Description
General part information
CDBD640-HF

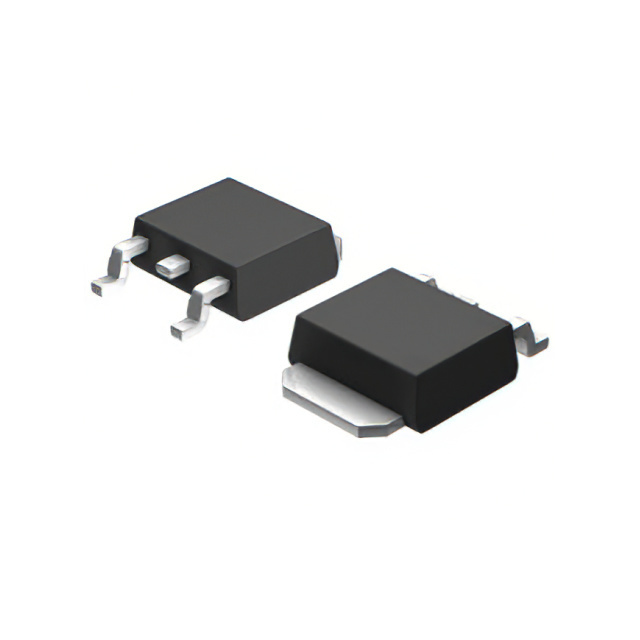

Diode 40 V 3A Surface Mount TO-252 (DPAK)
Technical Specifications
Parameters and characteristics for this part
| Specification | CDBD640-HF |
|---|---|
| Current - Average Rectified (Io) | 3 A |
| Current - Reverse Leakage | 0.5 mA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction (Max) | 150 °C |
| Operating Temperature - Junction (Min) | -55 °C |
| Package / Case | SC-63, DPAK (2 Leads + Tab), TO-252-3 |
| Package Name | TO-252 (DPAK) |
| Speed - Fast Recovery (Maximum) | 500 ns |
| Speed - Fast Recovery (Minimum) | 200 mA |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) | 570 mV, 570 mV |
