400-0917-02
ActiveSwift Bridge Technologies
40GHZ COAX CBL 2.92MM TO 2.92MM
400-0917-02
ActiveSwift Bridge Technologies
40GHZ COAX CBL 2.92MM TO 2.92MM
Description
General part information
400-0917-02

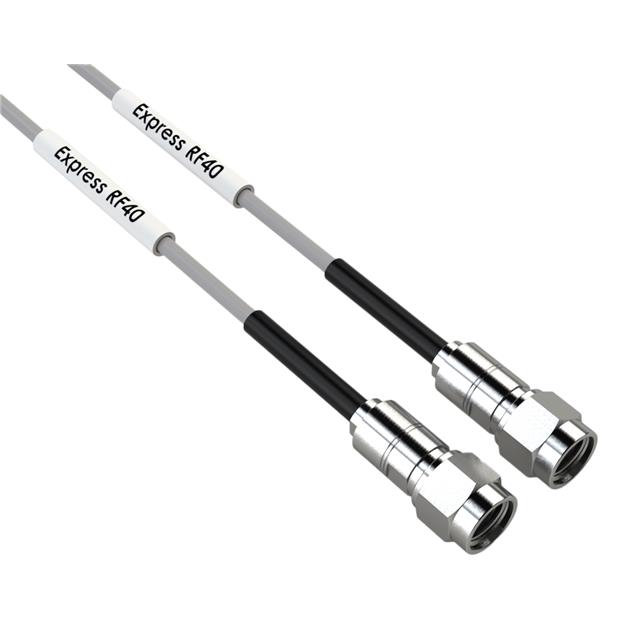

Cable Assembly Coaxial 2.92mm to 2.92mm 24.00" (609.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 400-0917-02 |
|---|---|
| 1st Connector | Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size | 2.92 mm |
| 1st Contact Gender | Male |
| 2nd Connector | Plug |
| 2nd Connector Diameter | 2.92 mm |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Color | Gray |
| Connector Impedance | 50 Ohms |
| Features | Low-Loss, Flexible, Phase Matched Pairs |
| Frequency - Max | 40 Gbps |
| Length | 0.945 in, 24 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -45 °C |
| Overall Impedance | 50 Ohms |
| Style | 2.92mm to 2.92mm |
