LCCA30596-FT2
ActivePasternack
TNC F TO BNC FBH USING LC085TB,
LCCA30596-FT2
ActivePasternack
TNC F TO BNC FBH USING LC085TB,
Description
General part information
LCCA30596-FT2

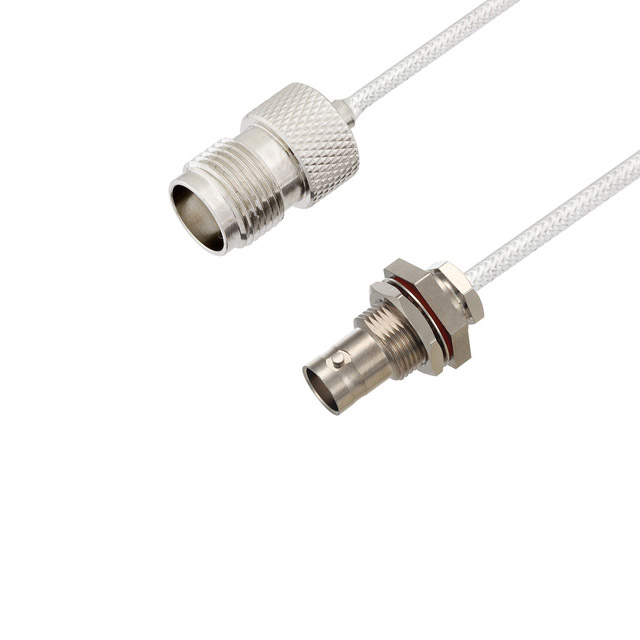

Cable Assembly Coaxial BNC to TNC LC085TB 24.00" (609.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30596-FT2 |
|---|---|
| 1st Connector | BNC Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | TNC Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | LC085TB |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 1 GHz |
| Length | 24 in |
| Overall Impedance | 50 Ohms |
| Style | BNC, TNC |
