1-1411001-2
ActiveTE Connectivity AMP Connectors
8POS,GET 0.64,REC HSG ASSY,SLD
1-1411001-2
ActiveTE Connectivity AMP Connectors
8POS,GET 0.64,REC HSG ASSY,SLD
Description
General part information
1-1411001-2

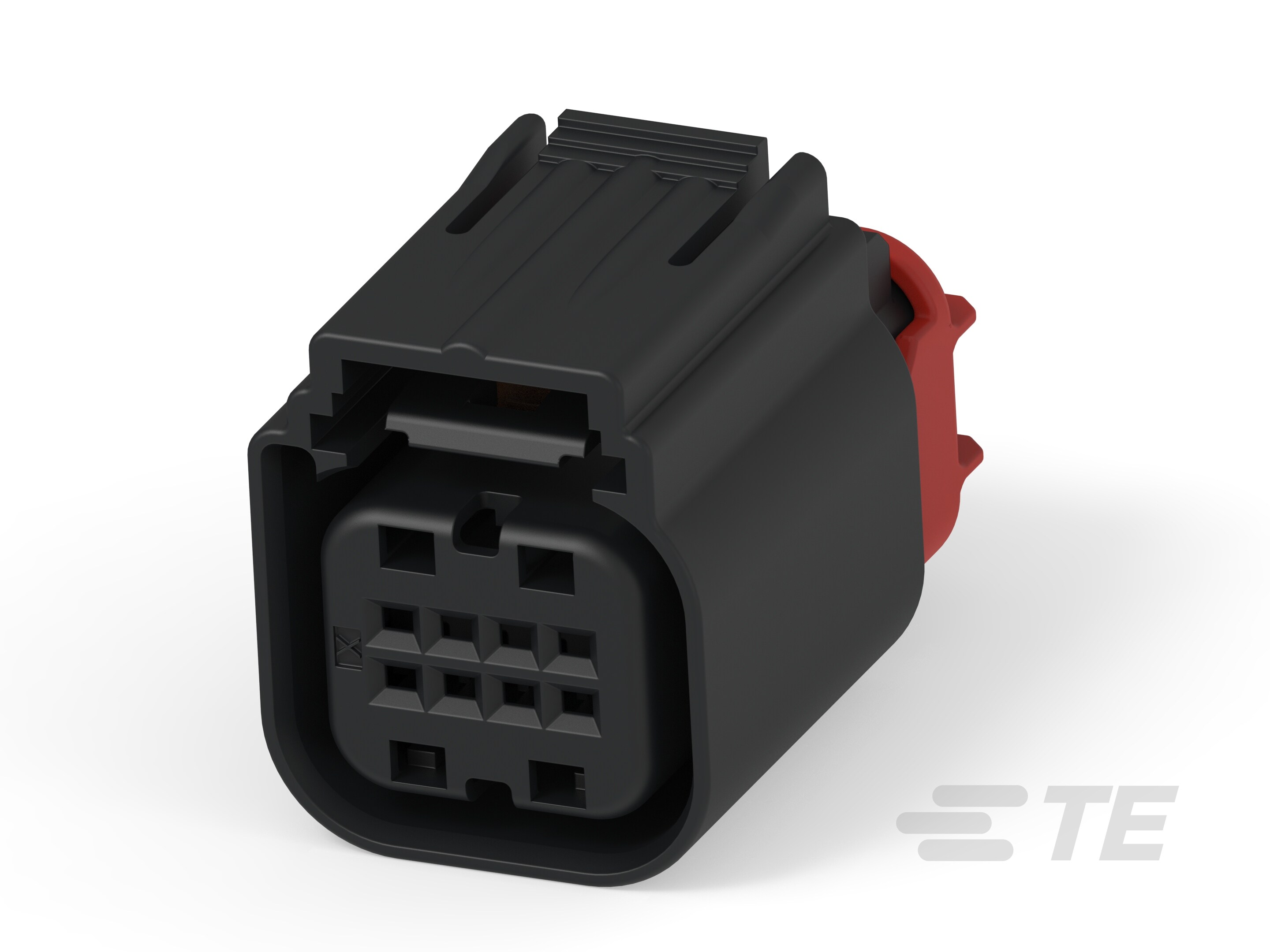

8 Position Housing, Housing for Female Terminals, Wire-to-Wire, 2.54 mm [.1 in] Centerline, Sealable, Black, Wire & Cable, Get .64 Connector System
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1411001-2 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Features | Sealed |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
