Description
General part information

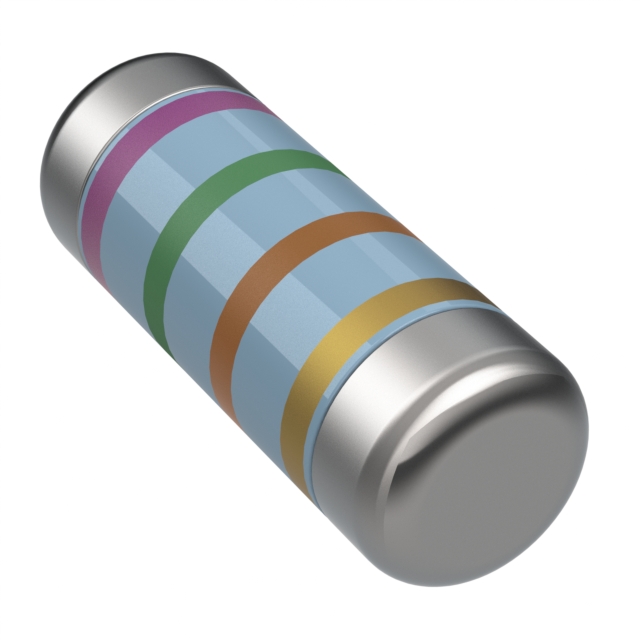

MCF-25JR-750R
750 Ohms ±5% 0.25W, 1/4W Chip Resistor MELF, 0207 Carbon Film
Technical Specifications
Parameters and characteristics for this part
| Specification | MCF-25JR-750R |
|---|---|
| Composition | Carbon Film |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0207, MELF |
| Package Name | MELF |
| Power (Watts) | 250 mW |
| Power (Watts) Options | 1/4W |
| Resistance | 750 Ohm |
| Size / Dimension Diameter | 0.087 in |
| Size / Dimension Length | 0.232 in |
| Temperature Coefficient (Highest) | 0 ppm/°C |
| Temperature Coefficient (Lowest) | -350 ppm/°C |
| Tolerance | 5 % |
