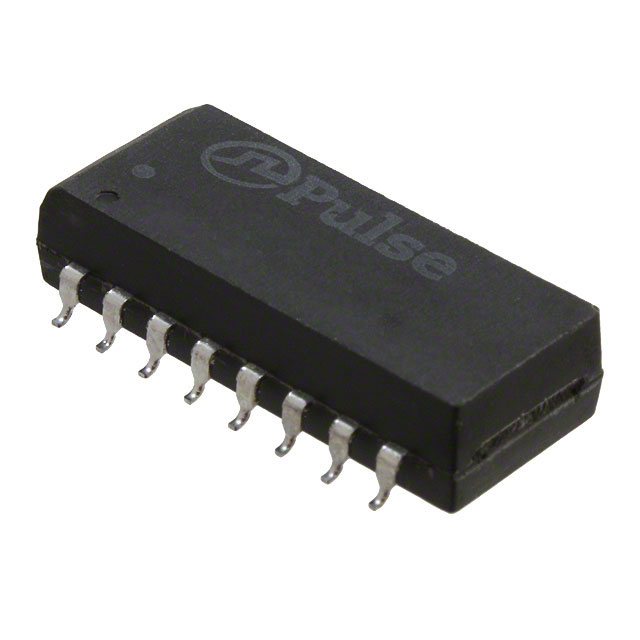

PE-68026
ObsoletePulse Electronics
MODULE FILTER SNGL LAN 16PIN SMD
PE-68026
ObsoletePulse Electronics
MODULE FILTER SNGL LAN 16PIN SMD
Description
General part information
PE-68026
Isolation and Data Interface (Encapsulated) Pulse Transformer 1:1 Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | PE-68026 |
|---|---|
| Height - Seated (Max) | 0.23 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Size / Dimension Length | 0.92 in |
| Size / Dimension Width | 0.385 in |
| Transformer Type | Data Interface (Encapsulated), Isolation |
| Turns Ratio - Primary | 1 |
| Turns Ratio - Secondary | 1 |
| Weight | 0.09 oz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
