ANT-2.4-YG12-N
ObsoleteTE Connectivity AMP Connectors
RF ANT 2.4GHZ YAGI N FEM BRKT MT
ANT-2.4-YG12-N
ObsoleteTE Connectivity AMP Connectors
RF ANT 2.4GHZ YAGI N FEM BRKT MT
Description
General part information
ANT-2.4-YG12-N

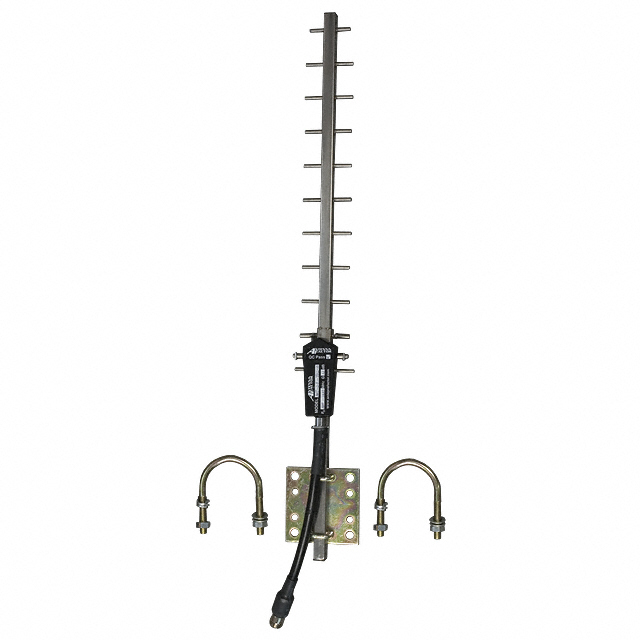

RF ANTENNA Yagi, 11-Element N Type Female Bracket Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-2.4-YG12-N |
|---|---|
| Antenna Element Count | 11 elements |
| Antenna Type | Yagi |
| Frequency (Center/Band) | 2.4 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Max) | 2.491 GHz |
| Frequency Range (Min) | 2.409 GHz |
| Gain | 12 dBi |
| Height (Max) | 23.031 in |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Power - Max | 100 VA |
| Termination | N Type Female |
| VSWR | 1.5 |
