190225-2
ActiveTE Connectivity AMP Connectors
RING TONGUE TERMINAL 16-20AWG BRASS 19.56MM PRE-TIN REEL/STRIP
190225-2
ActiveTE Connectivity AMP Connectors
RING TONGUE TERMINAL 16-20AWG BRASS 19.56MM PRE-TIN REEL/STRIP
Description
General part information
190225-2

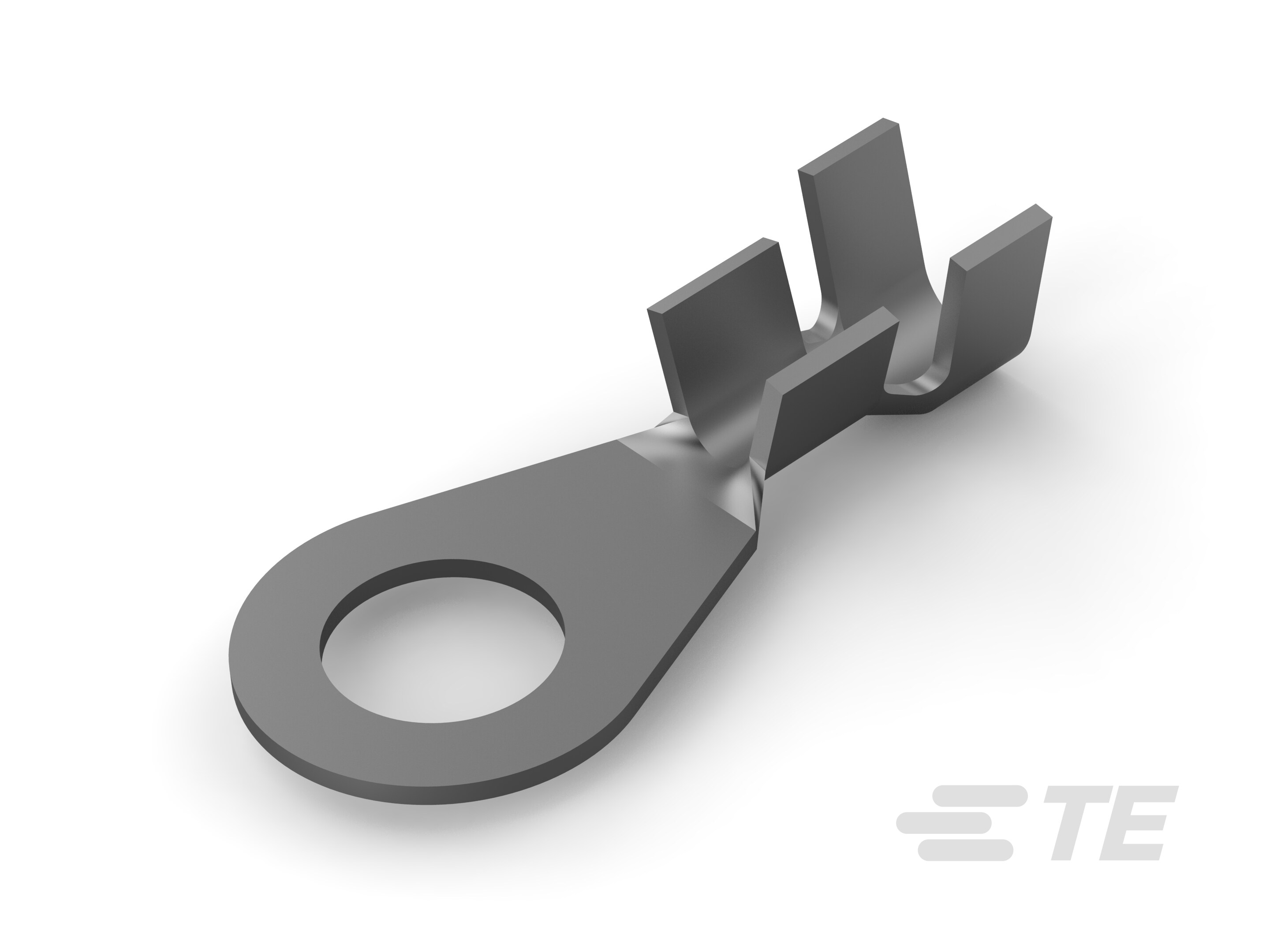

Closed Ring Tongue Terminal, 20 – 16 AWG, #10 Stud, 5 mm [.197 in] Stud Diameter, Open Barrel, Straight, Tin Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 190225-2 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Insulation | Non-Insulated |
| Length - Overall | 0.772 in |
| Mounting Type | Free Hanging (In-Line) |
| Terminal Type | Circular |
| Termination | Crimp |
| Width - Outer Edges | 0.343 in |
| Wire Gauge (AWG) (Max) | 20.5 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
