XB5EVM3
ActiveSCHNEIDER ELECTRIC
LED PANEL MOUNT INDICATOR, ROUND, GREEN, 240 VAC, 22 MM, IP66, IK05, NEMA 4X, NEMA 13
XB5EVM3
ActiveSCHNEIDER ELECTRIC
LED PANEL MOUNT INDICATOR, ROUND, GREEN, 240 VAC, 22 MM, IP66, IK05, NEMA 4X, NEMA 13
Description
General part information
XB5EVM3

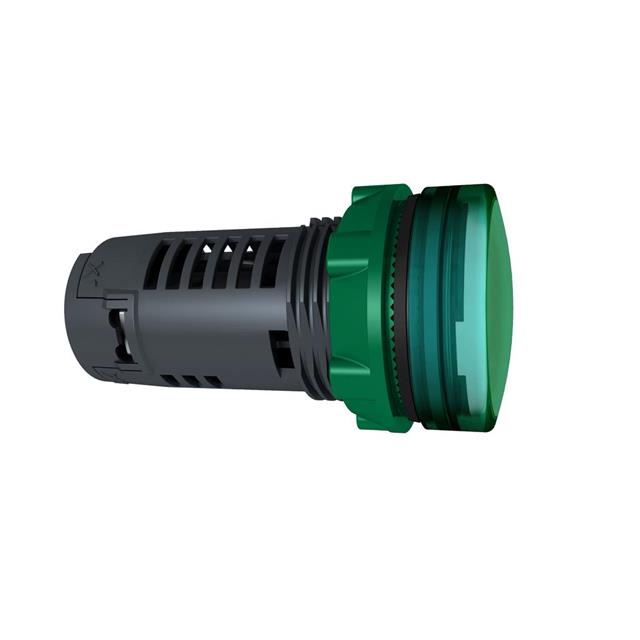

The XB5EVM3 from Schneider Electric is a green monolithic pilot light Ø22 plain lens with integral LED 230V.
Technical Specifications
Parameters and characteristics for this part
| Specification | XB5EVM3 |
|---|---|
| Current | 14 mA |
| Ingress Protection | IP69, IP67, NEMA 4X, 13, IP69K, IP66 |
| Lens Color | Green |
| Lens Diameter | 29 mm |
| Lens Style | Round, Flat Top |
| Panel Cutout Dimension | 0.87 " |
| Panel Cutout Shape | Round |
| Ratings | AC |
| Termination Style | Screw Terminal |
| Type | LED |
| Voltage (Max) | 240 V |
| Voltage (Min) | 230 V |
