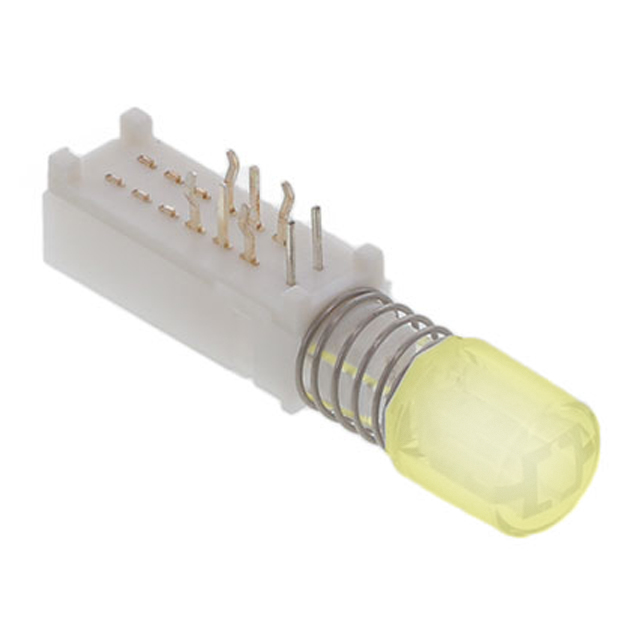

WBL2UOAYBQR05CLR

Active

E-Switch

SWITCH PUSHBUTTON DPDT 300MA 30V

Deep-Dive with AI

Search across all available documentation for this part.

WBL2UOAYBQR05CLR

Active

E-Switch

SWITCH PUSHBUTTON DPDT 300MA 30V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WBL2UOAYBQR05CLR	WBL2 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round, Button	Round, Button, Plunger for Cap
Circuit	DPDT	DPDT
Color - Actuator/Cap	Clear	Clear
Current Rating (Amps)	300 mA	300 mA
Illumination Type, Color	LED, Blue, Yellow	Green, Yellow, LED, Red, Blue, Blue/Red, Green/Red
Illumination Type, Color	-	Blue/Green
Illumination Type, Color	-	LED
Illumination Voltage (Nominal)	3.5 VDC, 1.7 VDC	1.7 - 3.5 VDC
Mechanical Life	10000 Steps	10000 Steps
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Switch Function	On-Mom	On-On, On-Mom
Termination Style	PC Pin	PC Pin
Type	Illuminated, Standard	Illuminated, Standard
Voltage Rating - DC	30 V	30 V

WBL2 Series

SWITCH PUSH DPDT 30V

Part	Voltage Rating - DC	Illumination Voltage (Nominal)	Termination Style	Current Rating (Amps)	Type	Switch Function	Illumination Type, Color	Circuit	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Mechanical Life	Color - Actuator/Cap	Actuator Marking	Illumination Type, Color [custom]	Illumination Type, Color [custom]
E-Switch WBL2UEEGYQR05BLKPWR	30 V	1.7 VDC	PC Pin	300 mA	Illuminated, Standard	On-On	Green, LED, Yellow	DPDT	Button, Round	-20 C	70 °C	Through Hole, Right Angle	10000 Steps	Clear
E-Switch WBL2UOAGQR05CLR	30 V	1.7 VDC	PC Pin	300 mA	Illuminated, Standard	On-Mom	Green, LED	DPDT	Button, Round	-20 C	70 °C	Through Hole, Right Angle	10000 Steps	Clear	No Marking
E-Switch WBL2UEEGBQR05CLR	30 V	1.7 VDC, 3.5 VDC	PC Pin	300 mA	Illuminated, Standard	On-On		DPDT	Button, Round	-20 C	70 °C	Through Hole, Right Angle	10000 Steps	Clear	No Marking	Blue/Green	LED
E-Switch WBL2UEEGYQ	30 V	1.7 VDC	PC Pin	300 mA	Illuminated, Standard	On-On	Green, LED, Yellow	DPDT	Plunger for Cap	-20 C	70 °C	Through Hole, Right Angle	10000 Steps		No Marking
E-Switch WBL2UOARQ	30 V	1.7 VDC	PC Pin	300 mA	Illuminated, Standard	On-Mom	LED, Red	DPDT	Plunger for Cap	-20 C	70 °C	Through Hole, Right Angle	10000 Steps		No Marking
E-Switch WBL2UOARQR05CLR	30 V	1.7 VDC	PC Pin	300 mA	Illuminated, Standard	On-Mom	LED, Red	DPDT	Button, Round	-20 C	70 °C	Through Hole, Right Angle	10000 Steps	Clear	No Marking
E-Switch WBL2UOABQ	30 V	3.5 VDC	PC Pin	300 mA	Illuminated, Standard	On-Mom	Blue, LED	DPDT	Plunger for Cap	-20 C	70 °C	Through Hole, Right Angle	10000 Steps		No Marking
E-Switch WBL2UEERBQR05CLR	30 V	1.7 VDC, 3.5 VDC	PC Pin	300 mA	Illuminated, Standard	On-On	Blue/Red, LED	DPDT	Button, Round	-20 C	70 °C	Through Hole, Right Angle	10000 Steps	Clear	No Marking
E-Switch WBL2UEERGQR05CLR	30 V	1.7 VDC	PC Pin	300 mA	Illuminated, Standard	On-On	Green/Red, LED	DPDT	Button, Round	-20 C	70 °C	Through Hole, Right Angle	10000 Steps	Clear	No Marking
E-Switch WBL2UEERQR05CLR	30 V	1.7 VDC	PC Pin	300 mA	Illuminated, Standard	On-On	LED, Red	DPDT	Button, Round	-20 C	70 °C	Through Hole, Right Angle	10000 Steps	Clear	No Marking

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.33
		10	$ 4.75
		25	$ 4.50
		84	$ 4.13
		252	$ 3.94
		504	$ 3.60
		1008	$ 3.41

Description

General part information

WBL2 Series

Pushbutton Switch DPDT Standard, Illuminated Through Hole, Right Angle
