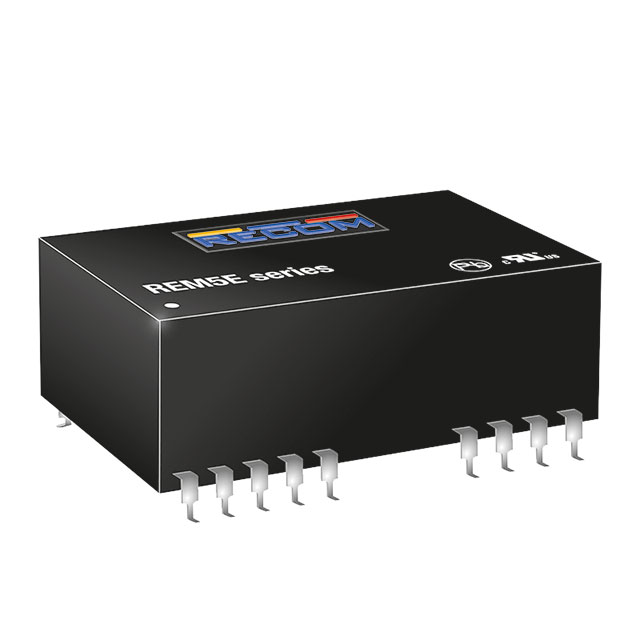

Specification	REM5E-0524S/R6/A/SMD

Applications	Medical
Approval Agency	CB, cURus
Current - Output (Max)	208 mA
Efficiency	82 %
Features	SCP, OVP, OCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-40 °C
Package Leads	18 Leads
Package Name	24-SMD Module
Power (Watts)	5 W
Size / Dimension Height	0.43 in
Size / Dimension Length	1.25 in
Size / Dimension Width	0.8 in
Type	Isolated Module
Voltage - Input (Max)	9 V
Voltage - Input (Min)	4.5 V
Voltage - Isolation	6 kV
Voltage - Output 1	24 V

REM5E Series

...

Part	Voltage - Isolation	Applications	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Voltage - Input (Max)	Number of Outputs	Mounting Type	Features	Voltage - Output 1	Package Leads	Package Name	Current - Output (Max)	Power (Watts)	Approval Agency	Type	Voltage - Input (Min)	Efficiency	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Output 2
Recom Power REM5E-0505S/R10/A/CTRL/X1	10000 Vrms	Medical	0.4 in	1.25 in	0.8 in	9 V	1	Through Hole	OCP OVP Remote On/Off SCP UVLO	5 V	7 Leads	24-DIP Module	1 A	5 W	CB cURus	Isolated Module	4.5 V	75 %	80 °C	-40 °C
Recom Power REM5E-0509D/R8/A/X1	8 kV	Medical	0.4 in	1.25 in	0.8 in	9 V	2	Through Hole	OCP OVP SCP UVLO	9 V	7 Leads	24-DIP Module	277 mA	5 W	CB cURus	Isolated Module	4.5 V	80 %	80 °C	-40 °C	-9 V
Recom Power REM5E-4812D/R10/A/CTRL	10000 Vrms	Medical	0.4 in	1.25 in	0.8 in	75 V	2	Through Hole	OCP OVP Remote On/Off SCP	12 V	7 Leads	24-DIP Module	208 mA	5 W	CB cURus	Isolated Module	36 V	84 %	80 °C	-40 °C	-12 V
Recom Power REM5E-4815D/R8/A	8 kV	Medical	0.4 in	1.25 in	0.8 in	75 V	2	Through Hole	OCP OVP SCP	15 V	7 Leads	24-DIP Module	166 mA	5 W	CB cURus	Isolated Module	36 V	84 %	80 °C	-40 °C	-15 V
Recom Power REM5E-4815S/R10/A/CTRL/X1	10000 Vrms	Medical	0.4 in	1.25 in	0.8 in	75 V	1	Through Hole	OCP OVP Remote On/Off SCP UVLO	15 V	7 Leads	24-DIP Module	333 mA	5 W	CB cURus	Isolated Module	36 V	84 %	80 °C	-40 °C
Recom Power REM5E-4805S/R10/A/X1	10000 Vrms	Medical	0.4 in	1.25 in	0.8 in	75 V	1	Through Hole	OCP OVP SCP UVLO	5 V	7 Leads	24-DIP Module	1 A	5 W	CB cURus	Isolated Module	36 V	82 %	80 °C	-40 °C
Recom Power REM5E-1205D/R8/A/CTRL/X1	8 kV	Medical	0.4 in	1.25 in	0.8 in	18 V	2	Through Hole	OCP OVP Remote On/Off SCP UVLO	5 V	7 Leads	24-DIP Module	500 mA	5 W	CB cURus	Isolated Module	9 V	80 %	80 °C	-40 °C	-5 V
Recom Power REM5E-1205S/R10/A/CTRL	10000 Vrms	Medical	0.4 in	1.25 in	0.8 in	18 V	1	Through Hole	OCP OVP Remote On/Off SCP	5 V	7 Leads	24-DIP Module	1 A	5 W	CB cURus	Isolated Module	9 V	80 %	80 °C	-40 °C
Recom Power REM5E-2405D/R8/A/CTRL/X1	8 kV	Medical	0.4 in	1.25 in	0.8 in	36 V	2	Through Hole	OCP OVP Remote On/Off SCP UVLO	5 V	7 Leads	24-DIP Module	500 mA	5 W	CB cURus	Isolated Module	18 V	81 %	80 °C	-40 °C	-5 V
Recom Power REM5E-1205S/R6/A/SMD	6 kV	Medical	0.43 in	1.25 in	0.8 in	18 V	1	Surface Mount	OCP OVP SCP	5 V	18 Leads	24-SMD Module	1 A	5 W	CB cURus	Isolated Module	9 V	80 %	80 °C	-40 °C
