Description
General part information
0936014094

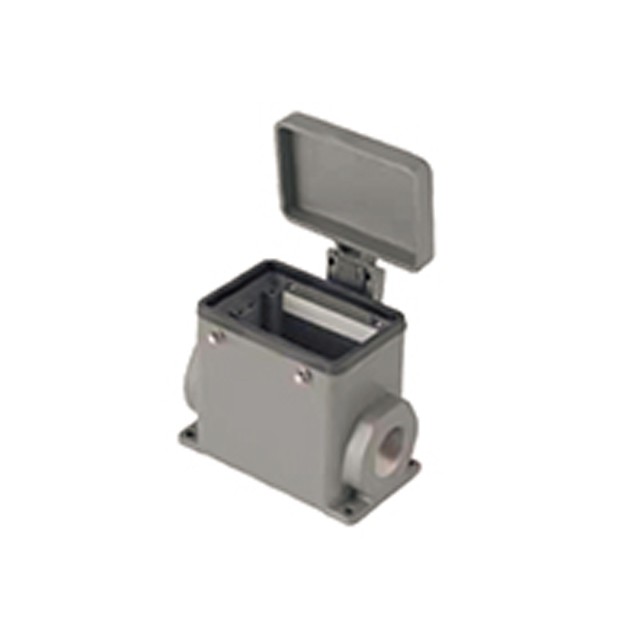

CONN BASE W/CVR SIDE SZ32A M25
Technical Specifications
Parameters and characteristics for this part
| Specification | 0936014094 |
|---|---|
| Connector Type | Base - Box Mount |
| Features | Feed Through, Cover |
| Housing Finish | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP66 |
| Lock Location | Locking Clip (2) on Hood |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | 32A |
| Size / Dimension Height | 3.228 in |
| Size / Dimension Length | 4.173 in |
| Size / Dimension Width | 2.244 in |
| Style | Side Entry |
| Thread Size | M25 |
