FMCN1349A
ActiveFairview Microwave
CONN PLUG CRIMP/SOLDER FAKRA
FMCN1349A
ActiveFairview Microwave
CONN PLUG CRIMP/SOLDER FAKRA
Description
General part information
FMCN1349A

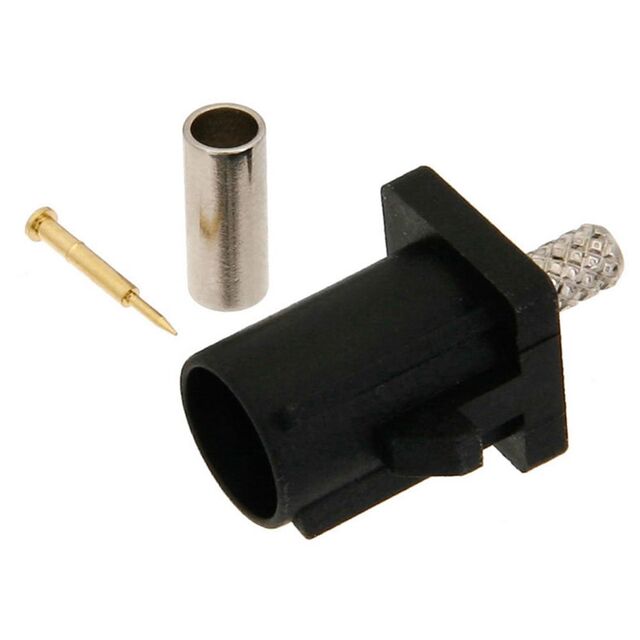

SMB, Fakra Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCN1349A |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 316, LMR-100, 188, RG-174 |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | Fakra, SMB |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Locking Ramp |
| Features | Code A |
| Features - Code | A |
| Frequency - Max | 4 GHz |
| Housing Color | Black |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Termination | Crimp |
| Voltage Rating | 335 V |
