Description
General part information

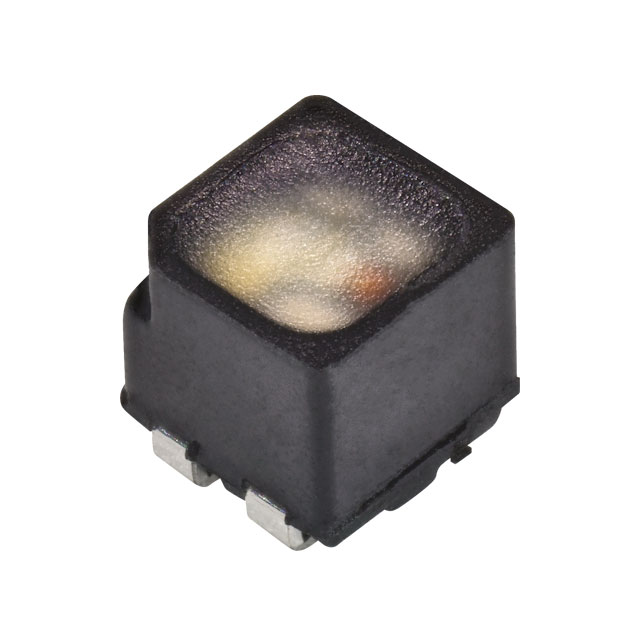

CLMWB-FKA-CDE1HJ1A1BB7C4R3
Red, Green, Blue (RGB) 622nm Red, 528nm Green, 471nm Blue LED Indication - Discrete 2V Red, 2.6V Green, 3.1V Blue 4-PLCC
Technical Specifications
Parameters and characteristics for this part
| Specification | CLMWB-FKA-CDE1HJ1A1BB7C4R3 |
|---|---|
| Color | Blue (RGB), Green, Red |
| Configuration | Independent |
| Current - Test (Blue) | 10 mA |
| Current - Test (Green) | 10 mA |
| Current - Test (Red) | 15 mA |
| Current - Test Colors | Green, Red, Blue |
| Features | IPx8 |
| Height (Max) | 1.7 mm |
| Lens Color | Colorless |
| Lens Style | Flat Top, Oval, Square |
| Lens Transparency | Diffused |
| Millicandela Rating (Blue) | 98.5 mcd |
| Millicandela Rating (Green) | 604 mcd |
| Millicandela Rating (Red) | 378.5 mcd |
| Millicandela Rating Colors | Green, Red, Blue |
| Mounting Type | Surface Mount |
| Package / Case | 4-PLCC |
| Package Name | 4-PLCC |
| Size / Dimension Length | 1.7 mm |
| Size / Dimension Width | 1.6 mm |
| Voltage - Forward (Vf) (Typ) (Blue) | 3.1 V |
| Voltage - Forward (Vf) (Typ) (Green) | 2.6 V |
| Voltage - Forward (Vf) (Typ) (Red) | 2 V |
| Voltage - Forward (Vf) (Typ) Color | Green, Red, Blue |
| Wavelength - Dominant (Blue) | 471 nm |
| Wavelength - Dominant (Green) | 528 nm |
| Wavelength - Dominant (Red) | 622 nm |
| Wavelength - Dominant Color | Red, Blue, Green |
