0600-00039
ActiveTE Connectivity AMP Connectors

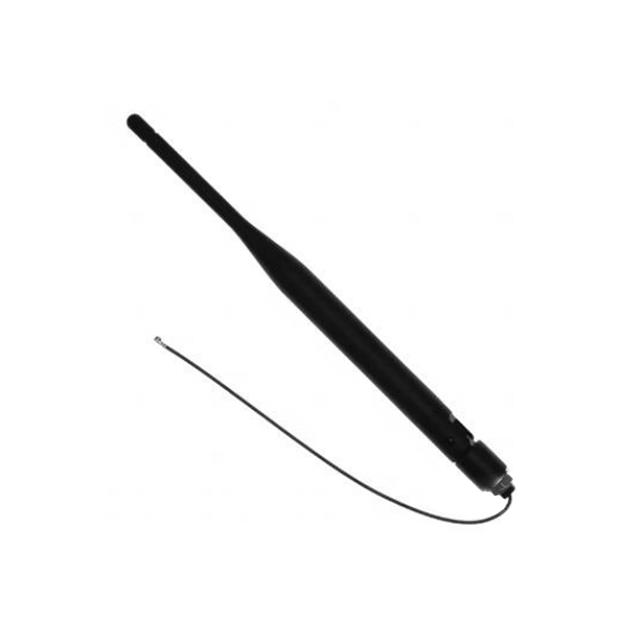

RF ANT 2.4GHZ WHIP/TILT PANEL MT
0600-00039
ActiveTE Connectivity AMP Connectors
RF ANT 2.4GHZ WHIP/TILT PANEL MT
Description
General part information
0600-00039
Terminal/Duck Antenna, Single Band, Wi-Fi, External Mount, Connector Mount, MMCX, Omnidirectional, Single Port, 0 < 3 dBi Peak Gain
Technical Specifications
Parameters and characteristics for this part
| Specification | 0600-00039 |
|---|---|
| Antenna Type | Tilt, Whip |
| Features | Cable, 127mm |
| Frequency (Center/Band) | 2.4 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Max) | 2.5 GHz |
| Frequency Range (Min) | 2.4 GHz |
| Gain | 5 dBi |
| Height (Max) | 7 in |
| Mounting Type | Panel Mount |
| Number of Bands | 1 |
| Termination Type | U.FL, I-PEX MHF1 |
| VSWR | 2 |
