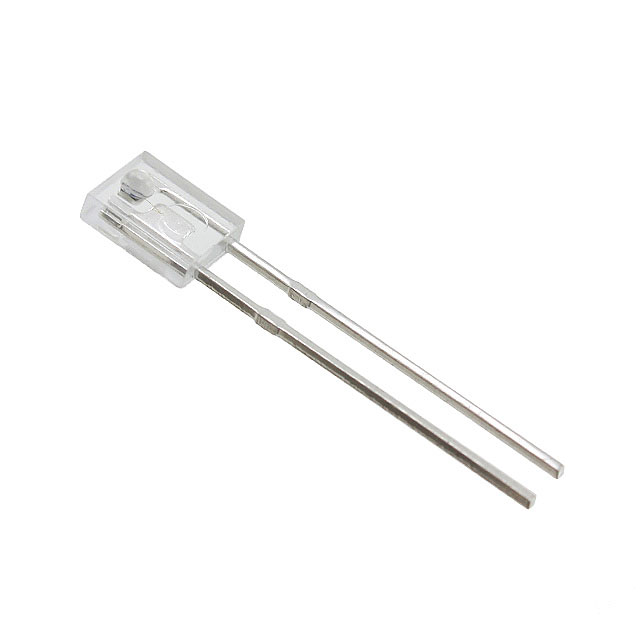

OP750C
ObsoleteTT Electronics/BI
SENSOR PHOTO 935NM SIDE VIEW RAD
OP750C
ObsoleteTT Electronics/BI
SENSOR PHOTO 935NM SIDE VIEW RAD
Description
General part information
OP750C
Phototransistors 935nm Side View Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | OP750C |
|---|---|
| Current - Collector (Ic) (Max) | 0.03 mA |
| Current - Dark (Id) (Max) | 100 nA |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Side View |
| Package / Case | Radial |
| Power - Max | 200 mW |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Wavelength | 935 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
