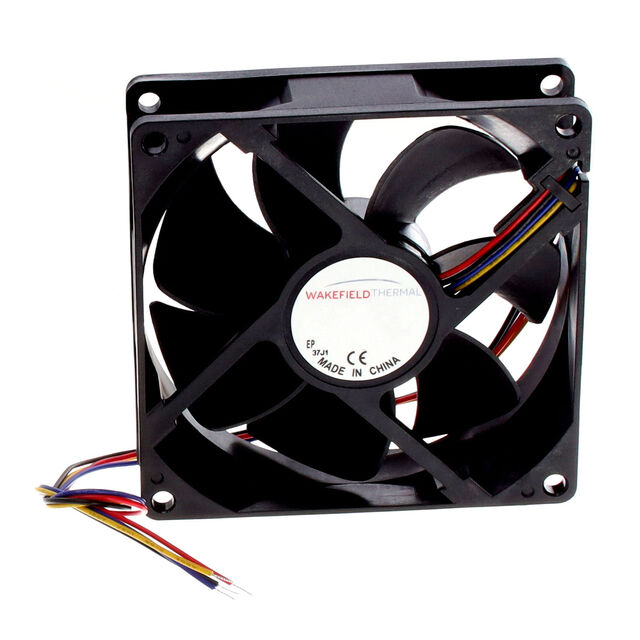

Specification	DC0922524L2B-BT0

Air Flow	44.8 CFM
Approval Agency	cURus, CE
Bearing Type	Ball
Current Rating	110 mA
Fan Type	Tubeaxial
Features	PWM Control, Locked Rotor Protection, Speed Sensor (Tach)
Lifetime	70000 Hrs
Material - Blade	Polybutylene Terephthalate, PBT, Glass Filled
Material - Frame	Glass Filled, Polybutylene Terephthalate (PBT)
Noise	30 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	14 °F
Power (Watts)	2.64 W
RPM	2450 RPM
Size / Dimension Height	92 mm
Size / Dimension Length	92 mm
Size / Dimension Shape	Square
Static Pressure	0.12 in H2O
Termination	4 Wire Leads
Termination Leads Count	4 leads
Termination Type	Wire Leads
Voltage - Rated	24 VAC
Width	25 mm

DC Series

DC Fans DC Fan, 50x50x10mm, 12VDC, Medium Speed, Ball, Lead Wires, 2 Pin Connector

...

Part	Features	Air Flow	Approval Agency	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Height	Voltage - Rated	RPM	Static Pressure	Noise	Operating Temperature (Max)	Operating Temperature (Min)	Power (Watts)	Bearing Type	Fan Type	Termination Leads Count	Termination Type	Termination	Width	Weight
Wakefield Thermal Solutions DC0803848V2B-2T2	Locked Rotor Protection	130 CFM	CE cURus	80 mm	Square	80 mm	48 VDC	9000 RPM	2 in H2O	66 dB	158 °F	14 °F	129.6 W	Ball	Tubeaxial	2	Position Rectangular Connector	2 Position Rectangular Connector	38 mm
Wakefield Thermal Solutions DC1203824W2B-3T1	Locked Rotor Protection Speed Sensor (Tach)	178.4 CFM	CE cURus	120 mm	Square	120 mm	24 VAC	4200 RPM	0.94 in H2O	54 dB	158 °F	14 °F	37.2 W	Ball	Tubeaxial	3	Position Rectangular Connector	3 Position Rectangular Connector	38 mm
Wakefield Thermal Solutions DC1202548J2B-2T2	Locked Rotor Protection	67.8 CFM	CE cURus	120 mm	Square	120 mm	48 VDC	2100 RPM	0.17 in H2O	35 dB	158 °F	14 °F	9.6 W	Ball	Tubeaxial	2	Position Rectangular Connector	2 Position Rectangular Connector	25 mm
Wakefield Thermal Solutions DC0923824U2B-2T2	Locked Rotor Protection	145.6 CFM	CE cURus	92 mm	Square	92 mm	24 VAC	7000 RPM	1.46 in H2O	67 dB	158 °F	14 °F	60 W	Ball	Tubeaxial	2	Position Rectangular Connector	2 Position Rectangular Connector	38 mm
Wakefield Thermal Solutions DC1203848H2B-2T0	Locked Rotor Protection	114.7 CFM	CE cURus	120 mm	Square	120 mm	48 VDC	2600 RPM	0.41 in H2O	41 dB	158 °F	14 °F	19.2 W	Ball	Tubeaxial	2 leads	Wire Leads	2 Wire Leads	38 mm
Wakefield Thermal Solutions DC1203824H2B-3T3	Locked Rotor Protection Speed Sensor (Tach)	114.7 CFM	CE cURus	120 mm	Square	120 mm	24 VAC	2600 RPM	0.41 in H2O	41 dB	158 °F	14 °F	9.6 W	Ball	Tubeaxial	3	Position Rectangular Connector	3 Position Rectangular Connector	38 mm
Wakefield Thermal Solutions DC1203848H2B-BT0	Locked Rotor Protection PWM Control Speed Sensor (Tach)	114.7 CFM	CE cURus	120 mm	Square	120 mm	48 VDC	2600 RPM	0.41 in H2O	41 dB	158 °F	14 °F	19.2 W	Ball	Tubeaxial	4 leads	Wire Leads	4 Wire Leads	38 mm
Wakefield Thermal Solutions DC0382012L2B-BT0	Locked Rotor Protection PWM Control Speed Sensor (Tach)	6.3 CFM	CE cURus TUV	38 mm	Square	38 mm	12 VAC	6700 RPM	0.22 in H2O	36 dB	158 °F	14 °F	1.2 W	Ball	Tubeaxial	4 leads	Wire Leads	4 Wire Leads	20 mm	0.067 lb
Wakefield Thermal Solutions DC0803224J2B-2T2	Locked Rotor Protection	38.1 CFM	CE cURus	80 mm	Square	80 mm	24 VAC	3000 RPM	0.2 in H2O	31 dB	158 °F	14 °F	3.6 W	Ball	Tubeaxial	2	Position Rectangular Connector	2 Position Rectangular Connector	32 mm
Wakefield Thermal Solutions DC0402012L2B-BT4	Locked Rotor Protection PWM Control Speed Sensor (Tach)	9.4 CFM	CE cURus TUV	40 mm	Square	40 mm	12 VAC	8000 RPM	0.35 in H2O	33 dB	158 °F	14 °F	960 mW	Ball	Tubeaxial	4 leads	Position Rectangular Connector	4 Position Rectangular Connector	20 mm
