Molex

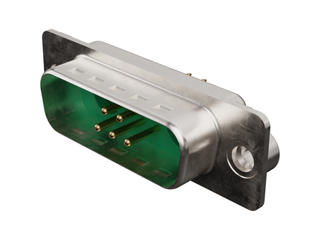

FCT MIXED LAYOUT D-SUB CONNECTOR, MALE, STRAIGHT, PCB THROUGH HOLE, GOLD PLATING, 10.30MM TAIL LENGTH, TIN-PLATED SHELL WITH DIMPLES, 2.70MM CLINCH NUT, 7 CIRCUITS MAX, 5 SIGNAL CONTACTS LOADED, GREEN INSULATOR

Find alt
1731070726

1731070726

Active
Molex

FCT MIXED LAYOUT D-SUB CONNECTOR, MALE, STRAIGHT, PCB THROUGH HOLE, GOLD PLATING, 10.30MM TAIL LENGTH, TIN-PLATED SHELL WITH DIMPLES, 2.70MM CLINCH NUT, 7 CIRCUITS MAX, 5 SIGNAL CONTACTS LOADED, GREEN INSULATOR

Find alt

Description

General part information

173107 Series

D-Sub Mixed Contact Connectors FCT ML DSUB RA PC PLG 24W7 W/CLINCH

Technical Specifications

Parameters and characteristics for this part

Specification1731070726
Connector LayoutDA, A
Connector StyleCombo, D-Sub
Connector TypeMale Pins, Plug
Contact FinishGold
Contact Finish Thickness31.5 µin
Contact TypeCoax or Power, Signal
Current Rating7.5 A
FeaturesGrounding Indents
FinishTin Plated
Flange FeatureBoard Side (4-40)
Ingress ProtectionIP20
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions (Special)2
Number of Positions (Standard)5
Number of Positions (Total)7
Number of Rows2
Part Code7W2
Position TypesPower, Coax
Primary MaterialMetal
Shell MaterialSteel
Shell Size2
TerminationSolder
