9925 060100

Active

Belden Inc.

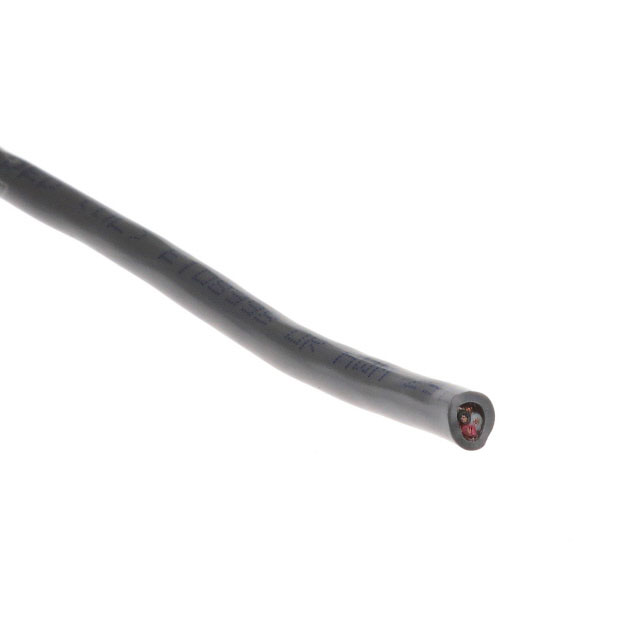

CABLE 3COND 24AWG CHROME SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 24AWG CHROME SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	9925 060100

Cable Type	Multi-Conductor
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.209 in
Jacket (Insulation) Diameter [diameter]	5.31 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	3
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2919
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Wire Gauge	24 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Ratings	Features	Jacket (Insulation) Material	Shield Coverage	Number of Conductors	Jacket Color	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]	Usage	Conductor Material	Cable Type	Shield Type	Wire Gauge
Belden Inc. 9925 060100	0.209 in	5.31 mm	0.889 mm	0.035 in	UL Style 2919	Drain Wire	Poly-Vinyl Chloride (PVC)	65 % 100 %	3	Chrome	Aluminum Copper Tinned	-30 ░C	80 C	Foam Polyethylene (FPE)	32 AWG	7	30.5 m	100 ft	Computer	Copper Tinned	Multi-Conductor	Braid Foil	24 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable Chrome 24 AWG Foil, Braid 100.0' (30.5m)
